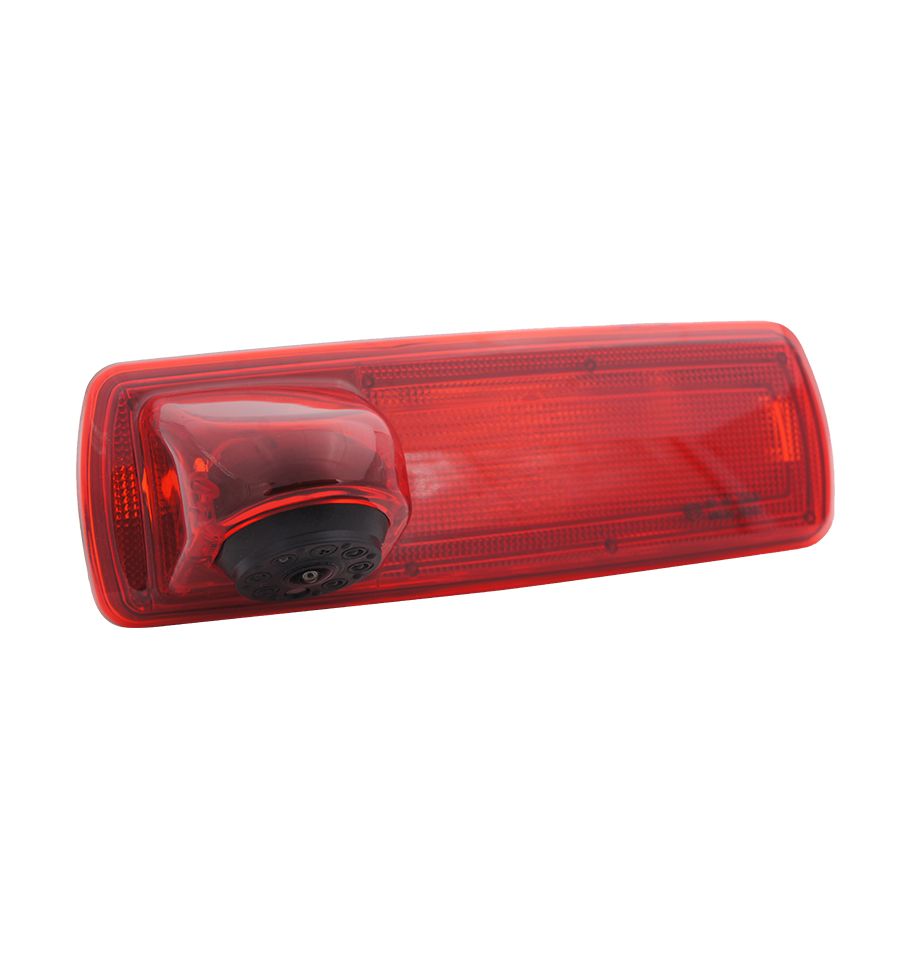

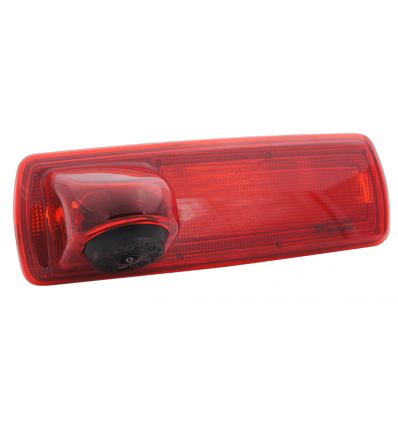

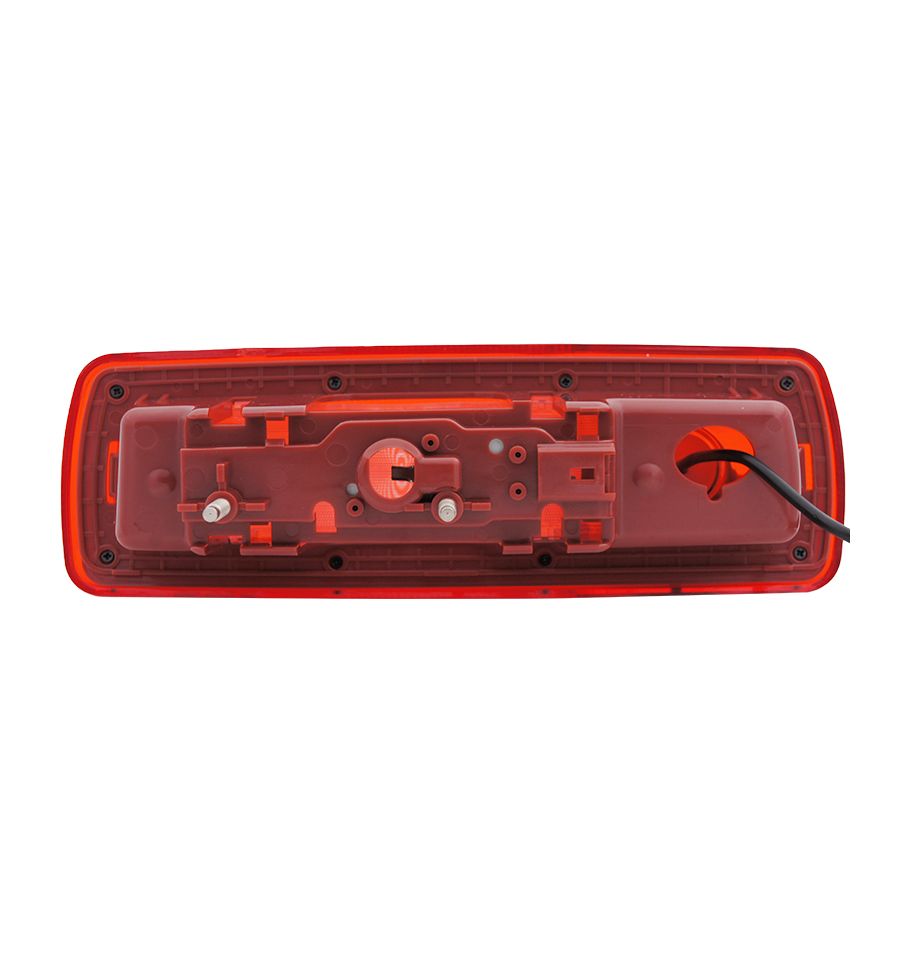

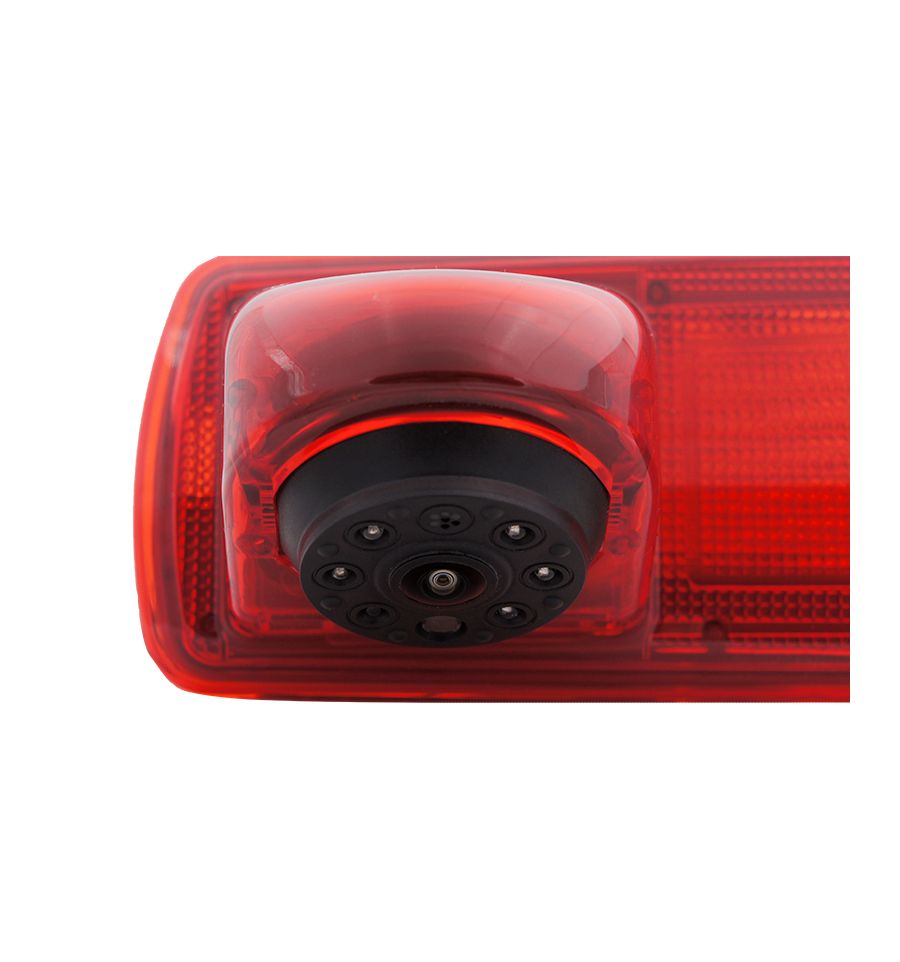

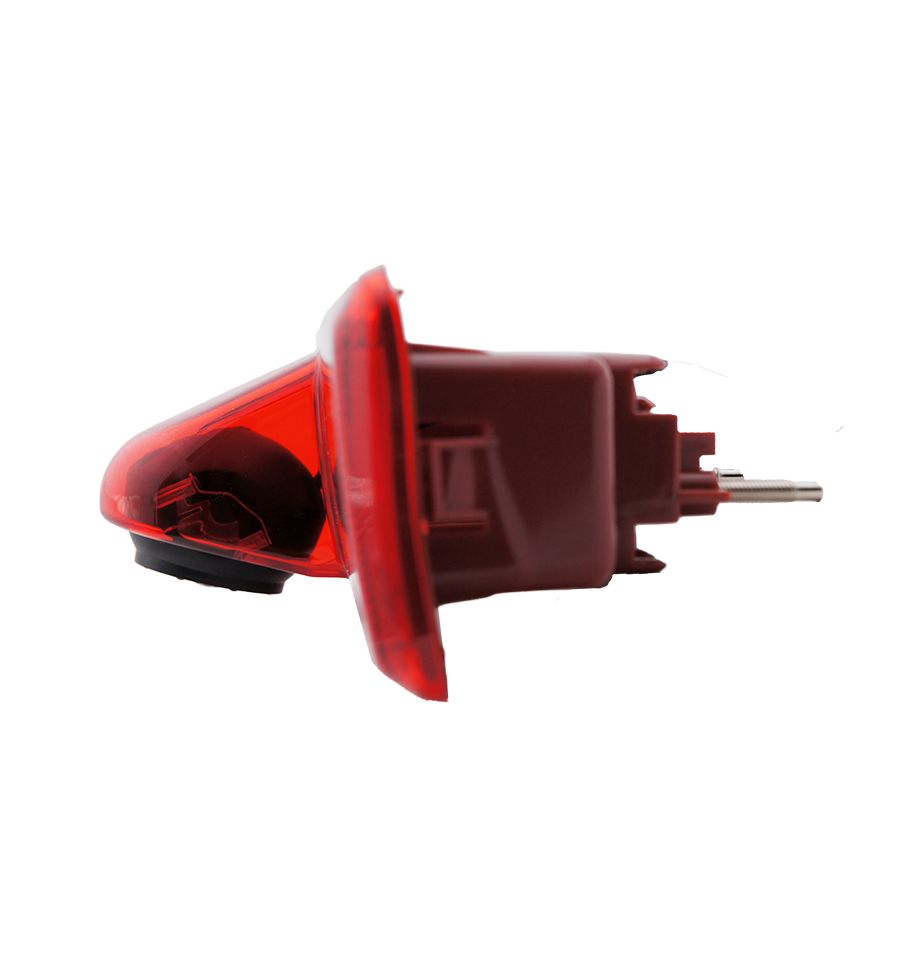

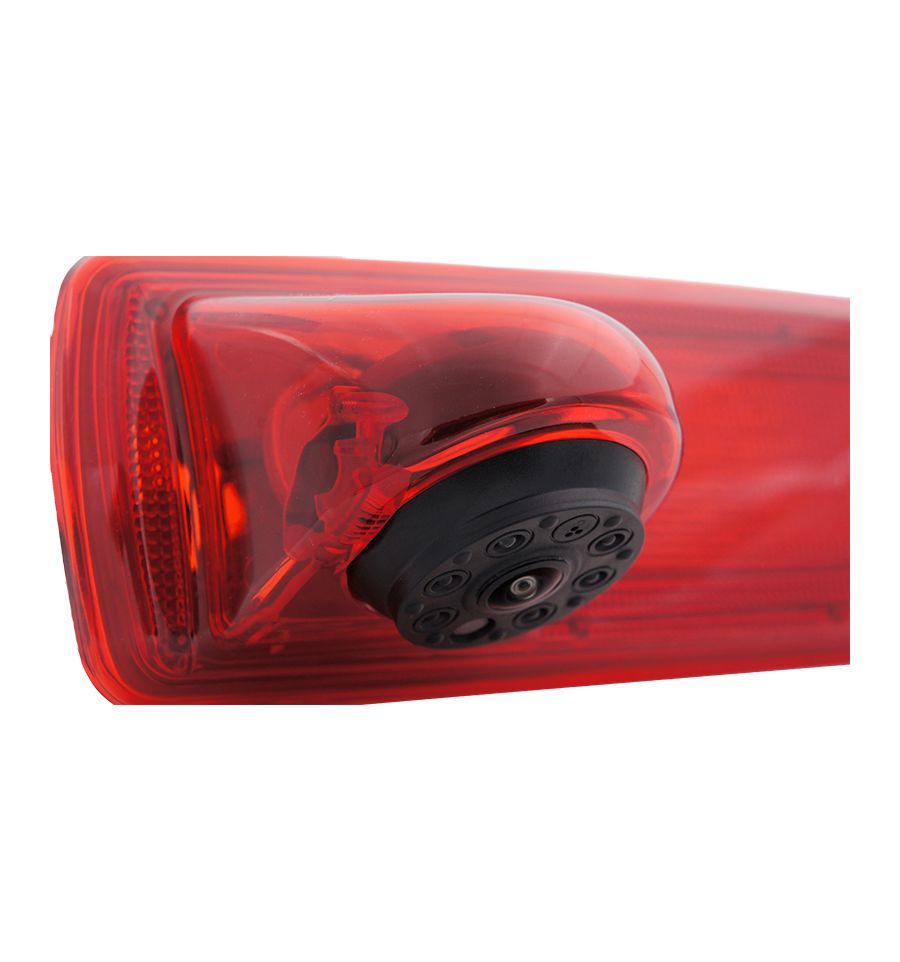

Nissan NV300/Primastar Rear-view camera exchange brake light with CMOS

Vehicle-specific exchange brake light illumination-glass with rear-view camera. For vehicles with tailgate and double door. Easy assembling by replacing the factory brake light illumination-glass. Professional connector cable with enough length and automotive plug connection. Easy to lay the cable due to a small cable diameter.

Compatible with:

•   NV300/Primastar from 11/2016  For vehicles with tailgate or double door -  Due to the arc of the tail gate, it is not possible to see the bumper and towing bar



NOTE:
Please check the size indications and the pictures of the camera for the compatibility with the vehicle, before buying!


Features:

• Camera in vehicle-specific 3rd brake light glass
• Mounted by exchanging the factory 3rd brake light glass
• Use of factory illumination
• Camera position adjustable in 3 steps vertically
• Sensor-type CMOS 1/4inch HD low-light sensitive
• NTSC format (800 TV lines)
• Bezel F1.36
• Light sensitivity 0.01 LUX
• Infrared night vision LED
• Angle horizontal 160°, vertical 120°, diagonal 200°
• Mirrored picture (fixed)
• Guide-lines can be switched
• Protection class IP69
• Mini 4pin-BM system harness with integrated throughput wire (blue) for reverse signal

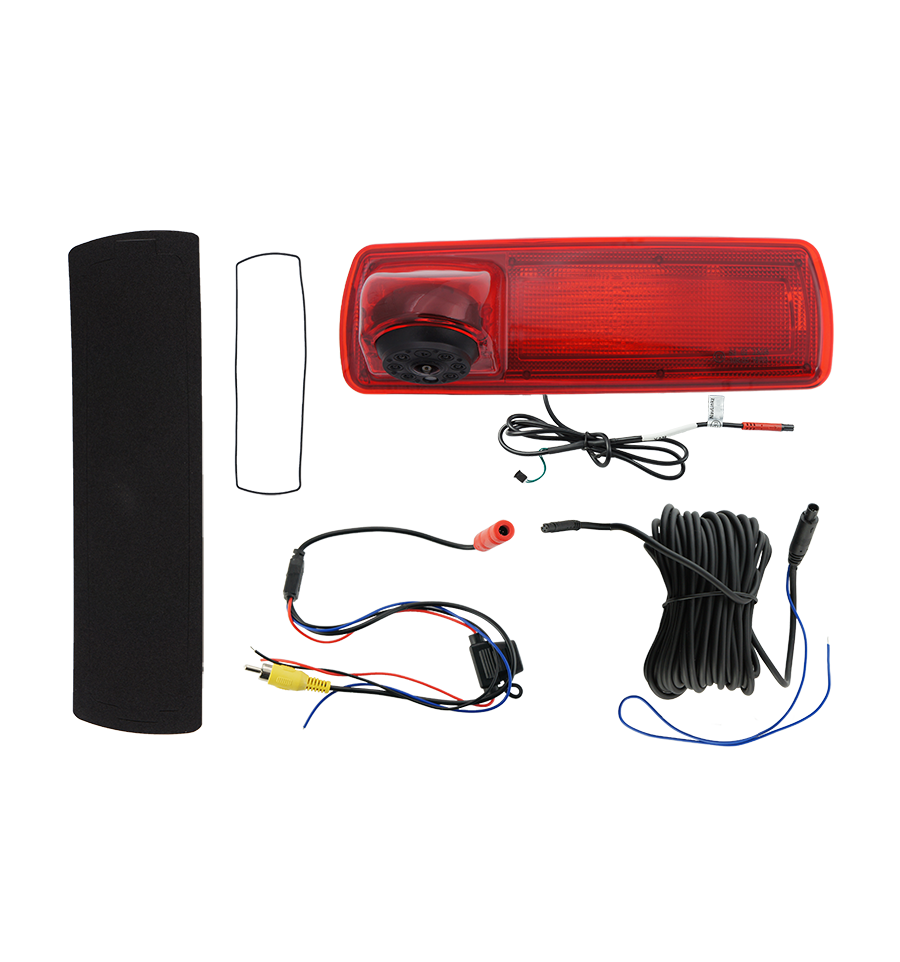

• 11.20m total system cable length, consists of:
  - 0.80m cable fixed on camera to female 4pin-BM (diameter 5mm)
  - 10.00m extension cable male 4pin-BM to female 4pin-BM
  - 0.40m adapter male 4pin-BM to male RCA and power wires
