Audi MIB and MIB2 video interface with front, rear and side camera inputs

Audi MIB and MIB2 video interface with front, rear and side camera inputs

The v.LOGiC camera interface allows to connect a rear-view camera and a front camera and side cameras to the factory navigation system of the vehicle manufacturer. From all operation modes, the video is automatically switched to connected factory and after-market cameras according to the users needs and switched back to previous video after the parking maneuver is finished.

 Product features:

• Picture-in-picture mode combining after-market rear-view and front camera picture(s) with factory parking sensor graphics
• Interactive lane lines with calibration function
• Simultaneous use of picture-in-picture factory parking sensor graphics and interactive lane lines
• Own on-screen display and setup
• Controls of AV sources (e.g. DVB-T Tuner, ...) by MIB system
• Rear-view camera input
• Automatic switching to rear-view camera input on engagement of reverse gear from all operation modes
• Front camera input
• 2 Side camera inputs
• Side- or front camera activation via blinker signal
• Manual switching to cameras
• 2 trigger outputs (+12V max. 1A), separately adjustable switching events (CAN, ACC, camera, reverse gear)
• Compatible with all factory video accessories
• USB update-port for software-updates by consumer

Compatibility:


Limitations:

• The interface inserts ONLY video signals into the infotainment. For inserting Audio signals either the possibly existing factory audio-AUX-input or a FM-modulator can be used. If 2 audio sources shall be connected to the infotainment, an additional electronic is necessary to switch them.

Specifications:

Connections:

• Video insertion: 4pin HSD
• Power: cable with open ends
• CAN: Plug & Play (12pin insert chamber E of the Quadlock
• Video-inouts (4x): female RCA connector

Delivery content:

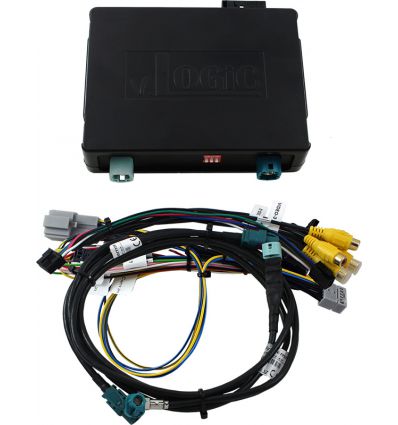

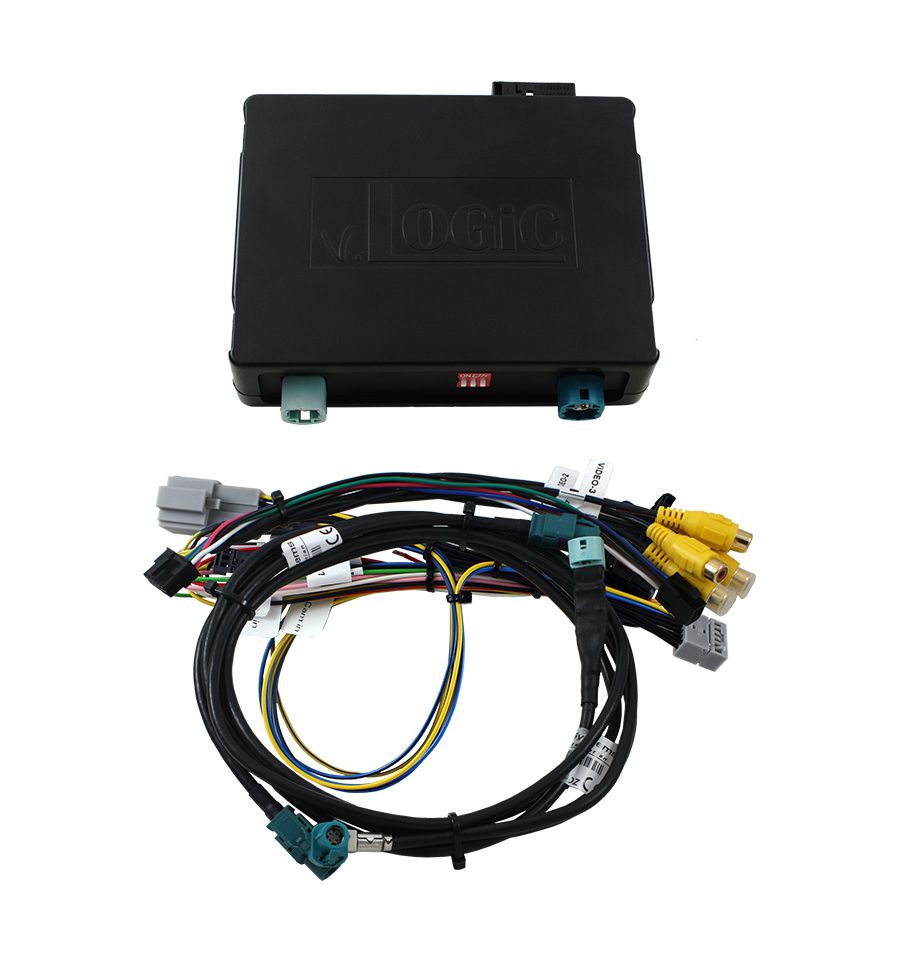

• Interface box

• Power and CAN harness

• Video inputs harness

• LVDS cables


Remember that in some states it is illegal to use the video in motion while driving!

The manufacturer of this item, and the administrator of this site will not be responsible for any damage to persons or property caused by improper use or in terms contrary to the laws.
