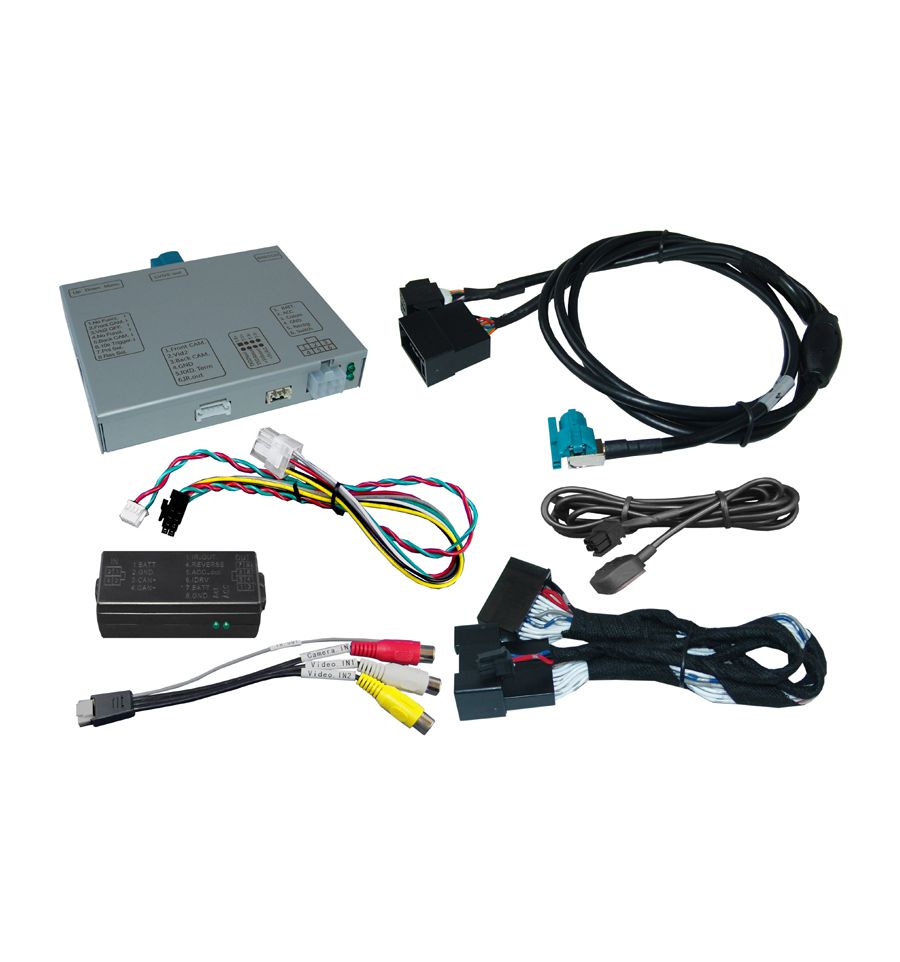

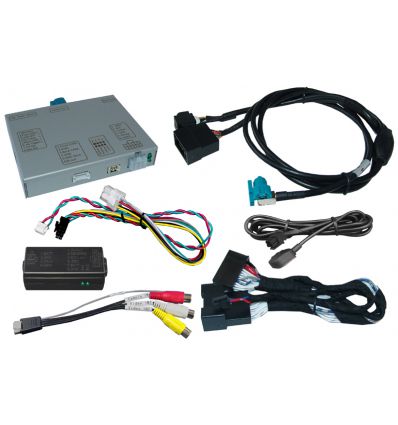

Audi A4 A5 Q5 Concert and Symphony radios video interface with rear-view camera input
CI-RL2-CONCERT
New
Video inserter for front- and rear-view camera and another video-source.
Compatible with Audi A4 A5 Q5 Concert and Symphony radios
Valutazione: Scrivi per primo una recensione!
Video inserter for front- and rear-view camera and another video-source.
Compatible with Audi A4 A5 Q5 Concert and Symphony radios
Product features
- Video-inserter for factory-infotainment monitors
- Rear view camera CVBS video-input
- 2 CVBS video-input for front camera and after-market devices (e.g. DVD-Player, DVB-T tuner, ...)
- Automatic switching to rear-view camera input on engagement of the reverse gear
- Manual switching to front camera by external keypad or button
- Activable parking guide lines for rear-view camera (not all vehicles)
- Video-in-motion (ONLY for connected video-sources)
- AV-inputs PAL / NTSC compatible
Compatibility
| Model | Radio/Navigation |
| A4 (8K) from 09/2017 til 08/2015 | Symphony / Concert |
| A5 (8T) from 06/2007 til 06/2016 | |
| Q5 (8R) from 11/2008 til 06/2012 |
Limitations
Specifications(interface-box)
Connections (Interface-box)
| Video only | The interface inserts ONLY video signals into the infotainment. For inserting Audio signals either the possibly existing factory audio-AUX-input or a FM-modulator can be used. |
| Factory rear-view camera | Automatic switching-back from inserted video to factory rear-view camera is only possible while the reverse gear is engaged. To delay the switch-back an additional electronic part is required. |
Specifications(interface-box)
| Operation voltage | 7V – 25V |
| Stand-by power drain | <10mA |
| Video input | 0.7V - 1V |
| Video input formats | PAL / NTSC |
| RGB-video amplitude | 0.7V with 75 Ohm impedance |
| Temperature range | -40°C to +85°C |
| Dimensions video-box | 113×22×92 mm (W×H×D) |
| Dimensions CAN-box | 73×22×30 mm (W×H×D) |
Connections (Interface-box)
- Video-insertion: 10-pin
- Power and CAN-bus: Plug & play
- Video-input: RCA connector
- Rear-view camera-input: RCA connector
- Front camera-input: RCA connector
Remember that in some states it is illegal to use the video in motion while driving!
The manufacturer of this item, and the administrator of this site will not be responsible for any damage to persons or property caused by improper use or in terms contrary to the laws.
| Audi | A4 8K, A5 / S5, Q5 8R |
| Category | Rear View Camera Interfaces |
