BMW F-series camera interface for Professional navigation CIC, Business navigation M-ASK, radio CHAMP
CI-V5-CIC-F-PNP
New
v.LOGiC camera interface compatible with F-series BMW Business/Professional CIC or radio with 8-button iDrive and 6.5inch, 7inch, 8.8inch or 10.25inch monitor and 4pin LVDS monitor plug.
For connection of a rear-view camera and a front-camera.
v.LOGiC V5 camera interface for F-series BMW vehicles with Business/Professional CIC or radio with 8-button iDrive and 6.5inch, 7inch, 8.8inch or 10.25inch monitor and 4pin LVDS monitor plug.
The v.LOGiC camera interface allows to connect a rear-view camera and a front camera to the factory navigation system of the vehicle manufacturer. From all operation modes, the video is automatically switched to connected factory and after-market cameras according to the users needs and switched back to previous video after the parking maneuver is finished.
Product features:
- Plug & play camera interface
- Own on-screen display and setup
- 1 rear-view camera input
- 1 front camera input
- 2 trigger outputs (+12V max. 1 A), separately adjustable switching events
- Automatic switching to rear-view camera input on engagement of reverse gear from all operation modes
- Automatic switching to front camera on parking maneuver, automatic return at 20 km/h
- Manual switching to rear-view camera (only for vehicles with PDC button)
- Manual return from rear-view and front camera (cancellation of automatic switching)
- Picture-in-picture mode combining after-market rear-view and front camera picture(s) with factory parking sensor graphics
- Compatible with all factory video accessories (e.g. rear-view camera, TV-tuner)
- USB update-port for software-updates by consumer
Compatibility:
Compatible to F-series BMW vehicles (with 8-button iDrive) with Professional navigation CIC, Business navigation M-ASK, radio CHAMP and 6.5inch, 7inch, 8.8inch or 10.25inch monitor with 4pin HSD connector.
| Model | Radio/Navigation |
| 5 series (F10/F11) | Professional navigation CIC Business navigation M-ASK radio CHAMP (6.5inch, 7inch, 8.8inch or 10.25inch monitor) |
| 6 series (F12/F13) | |
| 7series (F01/F02) | |
| GT5 (F07) | |
| X3 (F25) |
Specifications:
| Operation voltage | 10.5V – 14.8V |
| Stand-by power drain | <0.1mA |
| Operation power drain | 190mA |
| Power consumption | 2.6W |
| Temperature range | -20°C to +80°C |
| Weight | 285g |
| Video box dimensions | 141 x 30 x 105 mm (L×W×D) |
Connections:
- Video insertion: 4pin HSD
- Power: Plug & play (Quadlock)
- CAN: Cable with open ends
- Rear-view camera input: RCA
- Front-camera input: RCA

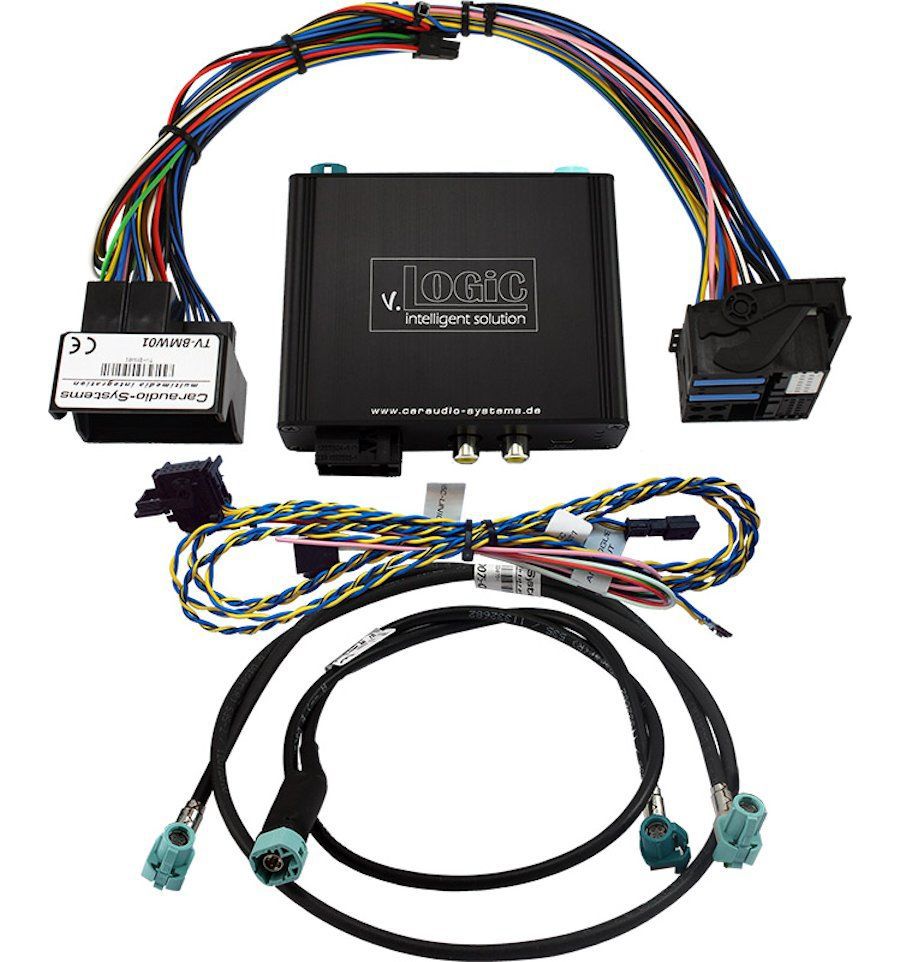

Delivery content:
- Interface box V5C-M631
- Harness TV-BMW01
- Harness V5C-UNI01
- LVDS cable V4C-LVDS10
Remember that in some states it is illegal to use the video in motion while driving!
The manufacturer of this item, and the administrator of this site will not be responsible for any damage to persons or property caused by improper use or in terms contrary to the laws.
| BMW | GT5 F07, 5 Series F10 / F11, 6 Series F12 F13, 7 Series F01 / F02, X3 F25 |
| Category | Rear View Camera Interfaces |
