Citroen NAC Rear and front camera interface Expand

Citroen NAC Rear and front camera interface

Citroen Citroen

CI-RL4-NAC08-CI

New

RVC Interface for front and rear view camera for Citroen NAC

More details

€ 339,00

tax incl.

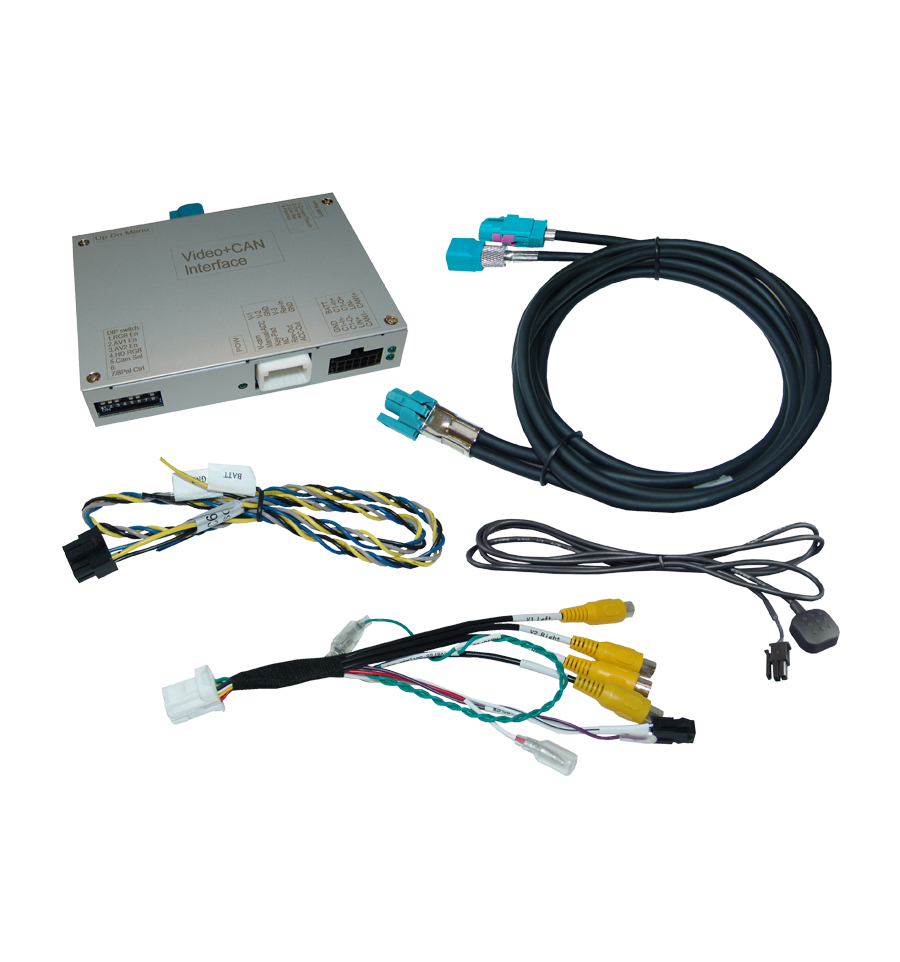

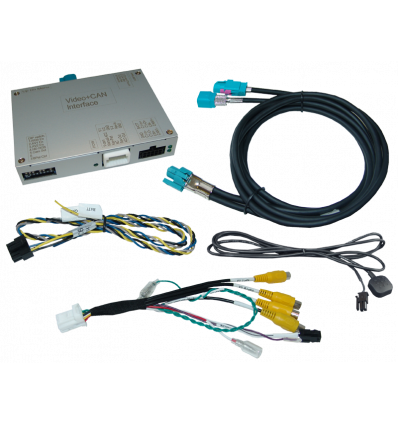

RVC Interface for front and rear view camera for Citroen NAC

This interface allows you to integrate a  rear-view camera, a front camera and 2 video-sources (upgraded devices, for example DVD player, DVB-T tuner).




Product features:

  • Video-insertion for factory infotainment systems
  • 1 Rear-view camera CVBS video-input
  • 1 CVBS front camera video-input
  • 2 CVBS video-inputs for after-market devices (e.g. DVD-Player, DVB-T tuner, .)
  • Automatic switching to rear-view camera input on engagement of reverse gear
  • Automatic front camera switching after reverse gear for 10 seconds
  • Video-in-motion (ONLY for connected video-sources)
  • Activatable Parking Guide Lines for Rear-View Camera (not all vehicles)
  • Compatible with factory rear-view camera
  • AV-inputs PAL/NTSC compatible

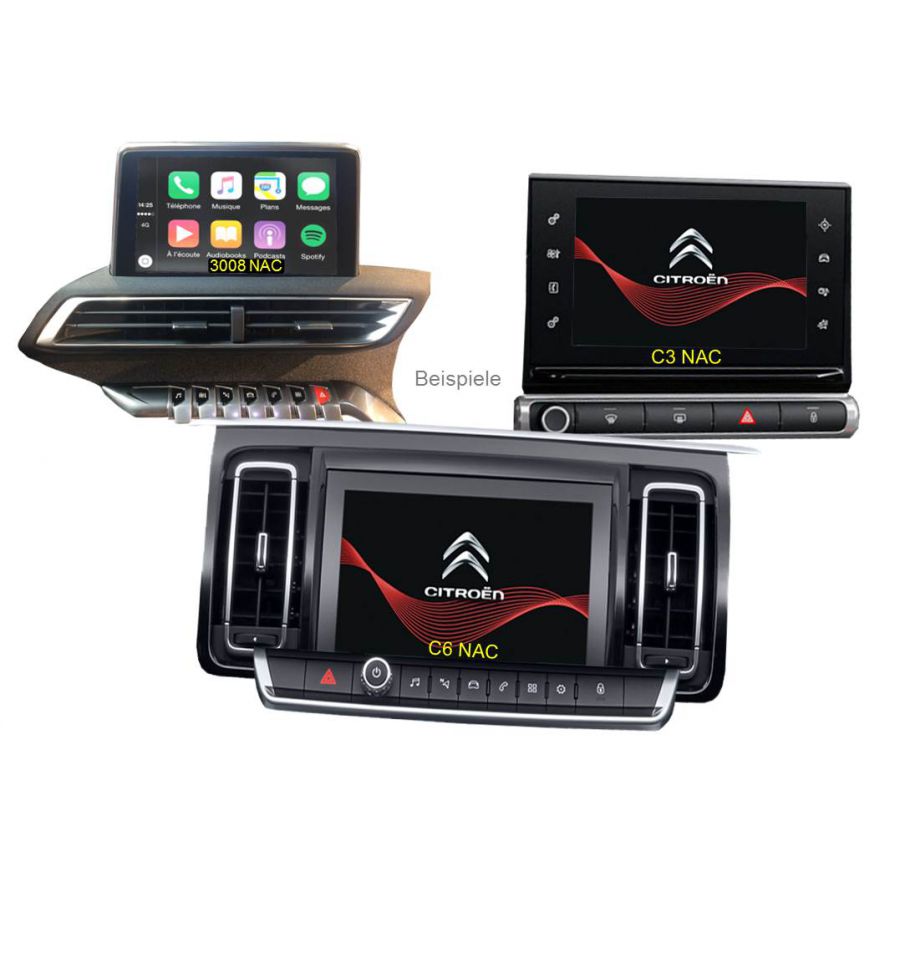

 Compatibility:

ModelRadio / Navigation
  C3 from 2017

NAC low/high (Continental), RCC (Bosch)

7" and 8" monitors

  C3 Aircross from 2018
  C4 from 2018
  C4 X 10/2022-
  C4 Picasso from 2017
  C4 Cactus II 01/2018-09/2020
  C5 Aircross 12/2018-
  C6 from 2016
  Berlingo from 2018
  Dispatch from 2017
  Jumpy from 2016
  Space Tourer from 2016



Limitations:

The interface inserts ONLY video signals into the infotainment. For sound use the possibly existing factory-audio-AUX-input or a FM-modulator.

Automatically switching-back from inserted video to factory rear-view camera is only possible while the reverse gear is engaged. To delay the switch-back an additional electronic part is required.



Specifications:



BATT/ACC range7V ~ 25V
Stand.by power drain2.8mA
Power300mA@12V
Power consumption2.4W
Video input0.7V - 1V
Video input formatsPAL/NTSC
RGB-video amplitude0.7V with 75 Ohm impedance
Temperature range-40°C to +85°C
Dimensions118 x 23 x 105 mm (W x H x D)



Connectors

  • Video-insertion: 4-pin HSD or double 4-pin HSD
  • Power and CAN-bus: Plug & play
  • Video-input (2x): RCA connector
  • Rear-view camera-input: RCA connector





Remember that in some states it is illegal to use the video in motion while driving!


The manufacturer of this item, and the administrator of this site will not be responsible for any damage to persons or property caused by improper use or in terms contrary to the laws.
