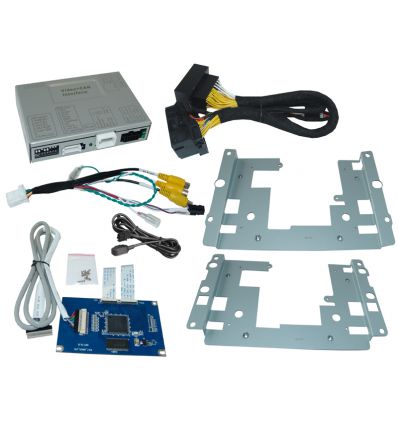

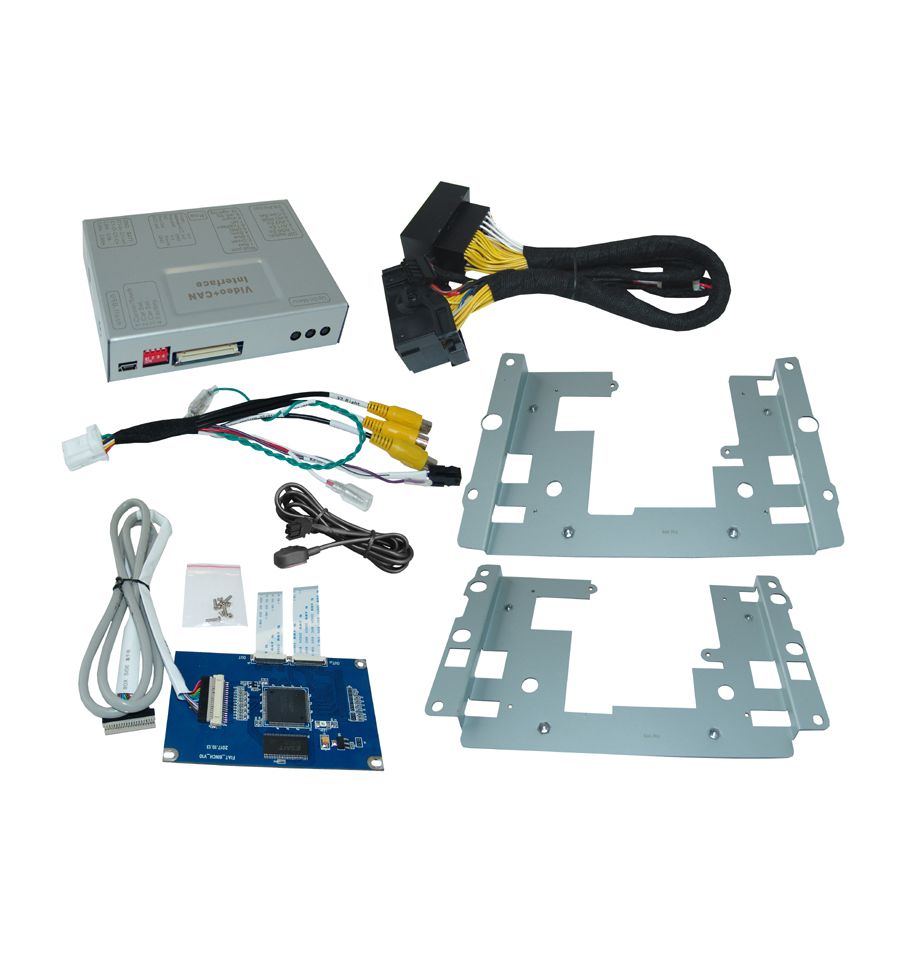

Fiat Uconnect 6,5" video interface with rear camera input

Video interface with rear camera input for Fiat Uconnect 6,5inch

Main features:

• Video-insertion for factory-infotainment systems
• Rear CVBS camera input.
• 2 CVBS video-inputs for after-market devices (e.g. DVD-Player, DVB-T tuner, .)
• Automatic switching to rear-view camera input on engagement of reverse gear
• Video-in-motion (ONLY for connected video-sources)
• AV-inputs PAL/NTSC compatible
• Full integration with the original system.

Compatibility:

Limitations:

• Head unit must be temporary opened to install this interface, professional installation is required.
• The interface inserts ONLY video signals into the infotainment. For sound use the possibly existing factory-audio-AUX-input or a FM-modulator.
• Automatically switching-back from inserted video to factory rear-view camera is only possible while the reverse gear is engaged. To delay the switch-back, an additional electronic part is required.

Specifications:

Connectors:

• Video-insertion: ribbon cable
• Power and CAN-bus: Plug & play (vehicle specific)
• Video-input (2x): female RCA connector
• Rear-view camera-input: female RCA connector

Remember that in some states it is illegal to use the video in motion while driving!
The manufacturer of this item, and the administrator of this site will not be responsible for any damage to persons or property caused by improper use or in terms contrary to the laws.
