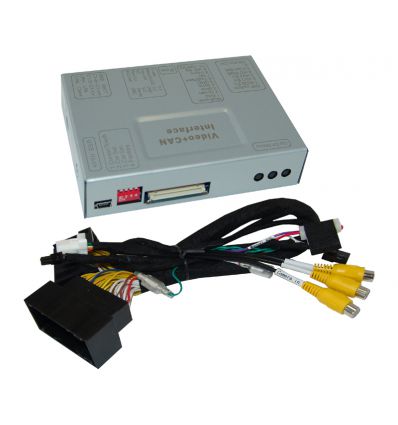

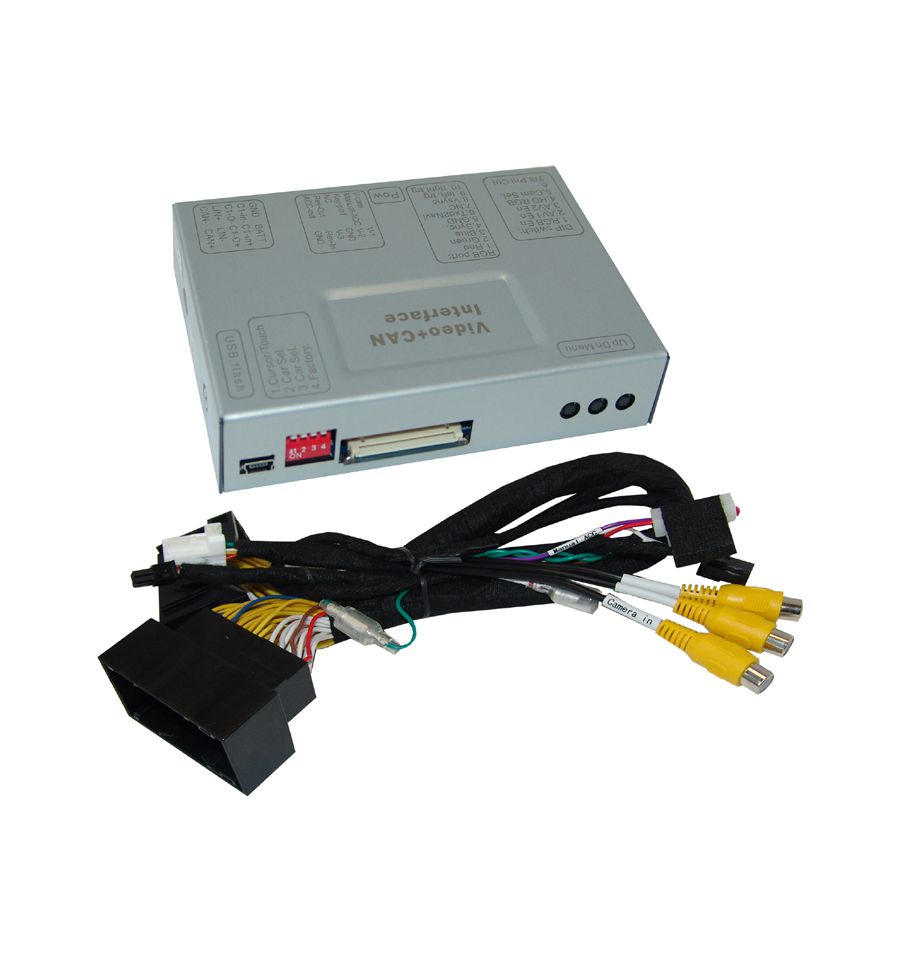

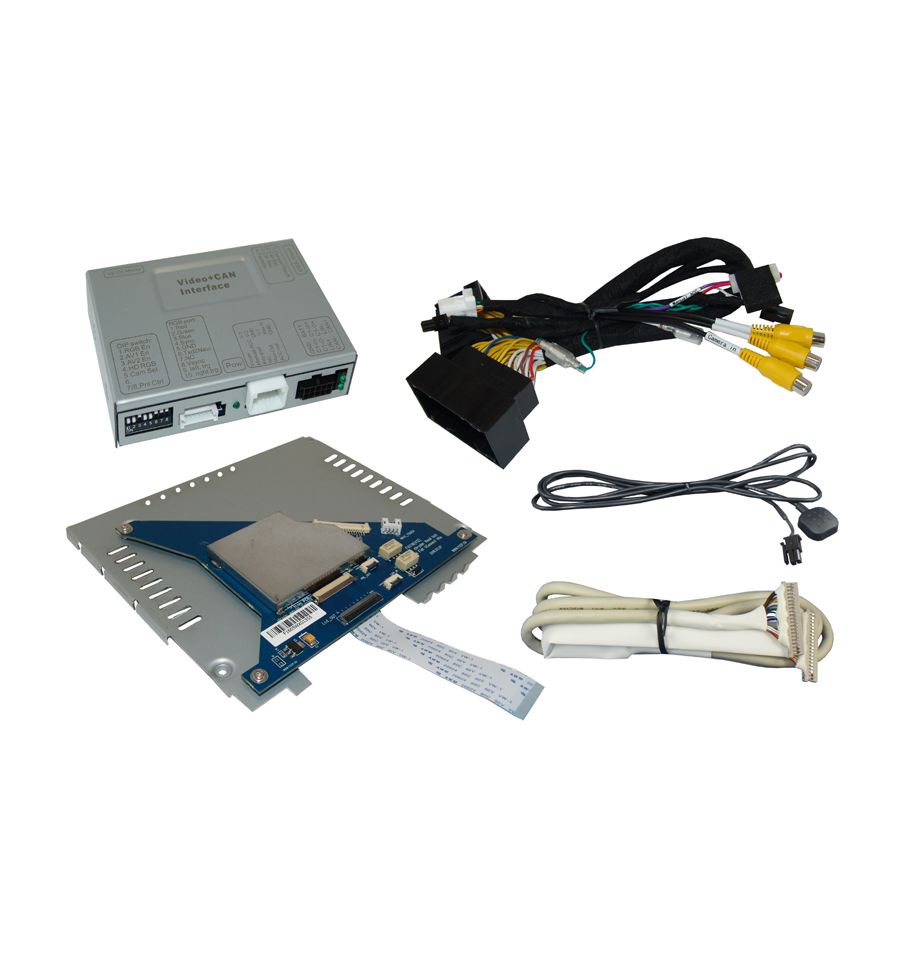

Fiat Uconnect 5" front and rear camera inputs video interface

Video interface with front and rear camera inputs for Fiat Uconnect VP2/RA2, 5inch monitor with DIN-shell behind front-panel.

Main features:

• Video-insertion for factory-infotainment systems
• Rear and front camera CVBS video-inputs.
• 1 CVBS video-inputs for after-market devices (e.g. DVD-Player, DVB-T tuner, .)
• Automatic switching to rear-view camera input on engagement of reverse gear
• Manual Switching to Front Camera by Keypad or factory button
• Activatable parking guide lines for rear-view camera (not available on all vehicles)
• Video-in-motion (ONLY for connected video-sources)
• Compatible with factory rear-view camera
• AV-inputs PAL/NTSC compatible
• Full integration with the original system

Compatibility:

Note:

• Head unit must be temporary opened to install this interface, professional installation is required.
• The interface inserts ONLY video signals into the infotainment. For sound use the possibly existing factory-audio-AUX-input or a FM-modulator.
• Automatically switching-back from inserted video to factory rear-view camera is only possible while the reverse gear is engaged. To delay the switch-back an additional electronic part is required.

Specifications

Connectors

• Video-insertion: ribbon cable
• Power and CAN-bus: Plug & play
• Video-input (2x): RCA connector
• Rear-view camera-input: RCA connector

Remember that in some states it is illegal to use the video in motion while driving!
The manufacturer of this item, and the administrator of this site will not be responsible for any damage to persons or property caused by improper use or in terms contrary to the laws.
