Renault R-LINK2 Rear and front camera video interface Expand

Renault R-LINK2 Rear and front camera video interface

Renault Renault

CI-RL4-RLINK2

New

RVC Interface for front and rear view camera for Renault R-LINK2 small 7" and large 8,7"

More details

€ 399,00

tax incl.

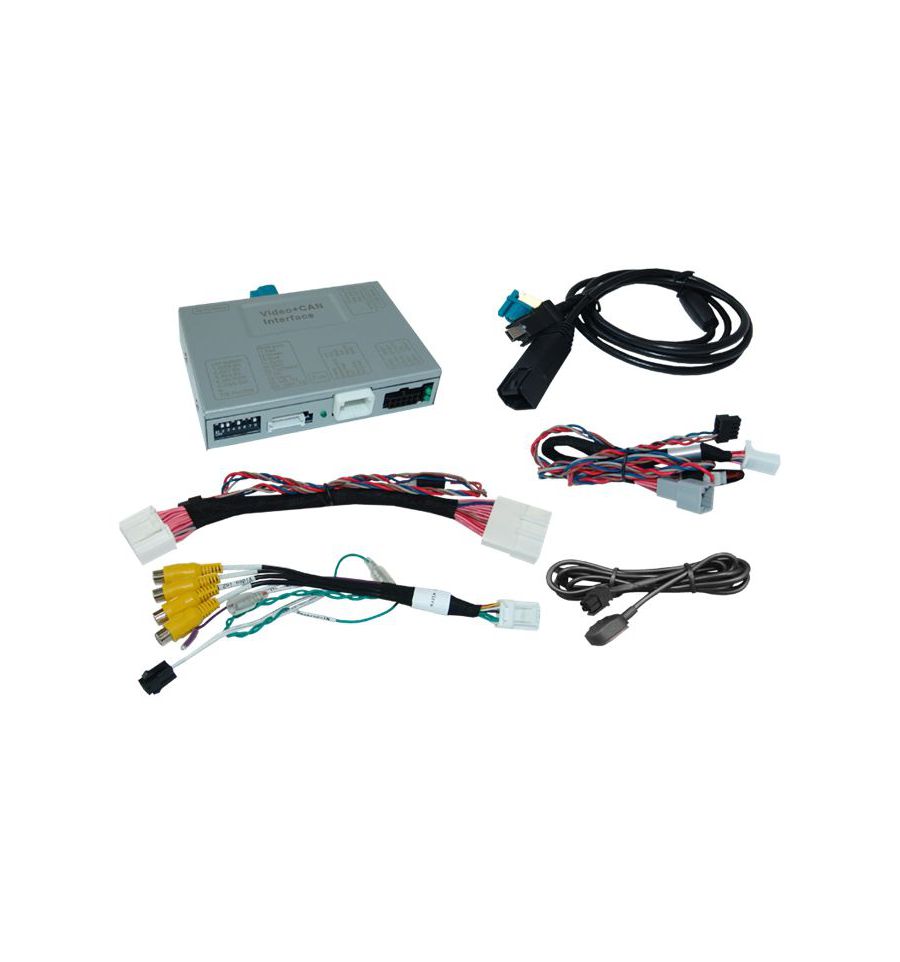

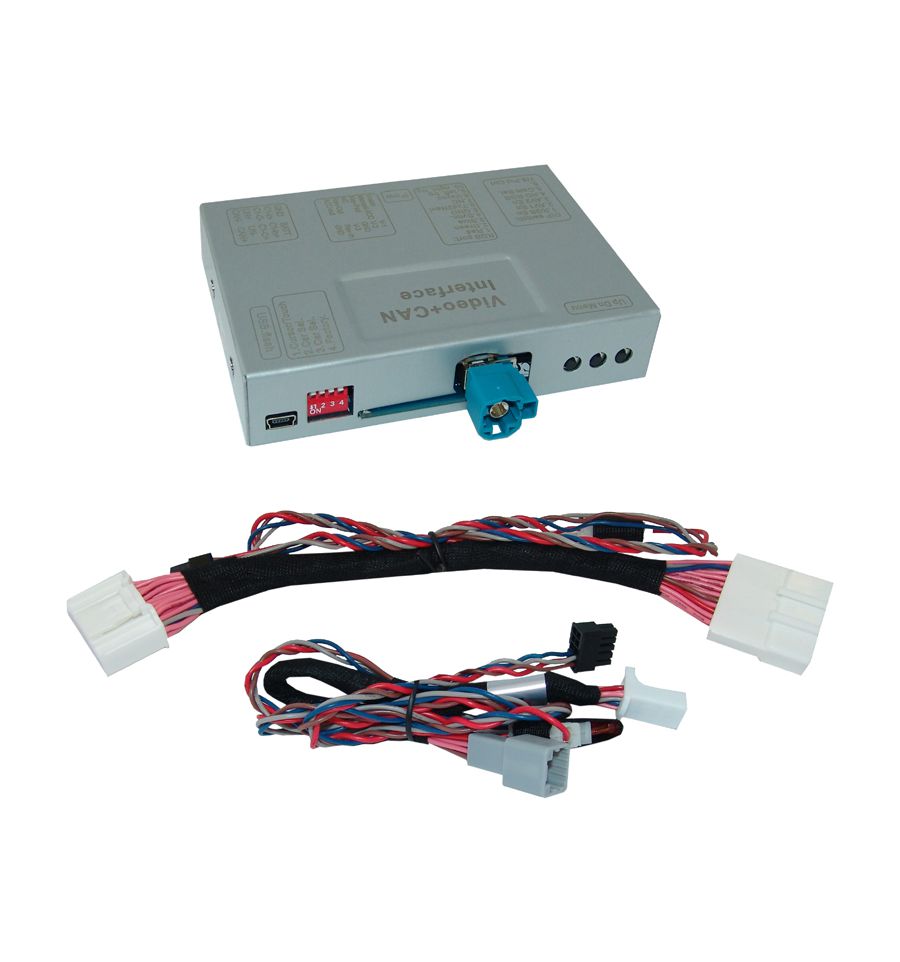

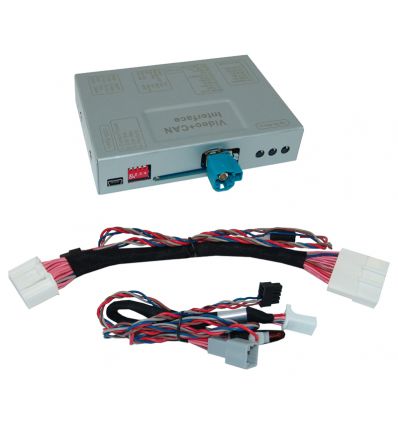

RVC Interface for front and rear view camera for Renault R-LINK2 small 7" and large 8,7"



This interface allows you to integrate a rear view and a front view camera to your car factory fitted screen. Once connected it gives you an additional video input to connect an in car DVD player, games console iPod video, digital TV tuner.




Product features:

  • Video-insertion
  • Rear and front camera inputs.
  • 2 video-inputs for after-market devices (e.g. DVD-Player, DVB-T tuner, .)
  • Automatic switching to rear-view camera input on engagement of reverse gear
  • Automatic Switching to Front Camera after reverse gear for 10 secs
  • Video-in-motion (ONLY for connected video-sources)
  • Compatible with factory rear-view camera
  • AV-inputs PAL/NTSC compatible




 Compatibility:


ModelRadio / Navigation
  Espace 2016 >
R-LINK2 7" (small)
R-LINK2 8,7" (large)
  Kadjar 2016 >
  Megane 2016 >
  Scenic 2016 >
  Talisman 2016 >
  Captur MY 2017-2019
  Clio MY 2017-2019
  Koleos 2016 >
  Master
  Other vehicles with R-LINK2



Limitations: The interface inserts ONLY video signals into the infotainment. For sound use the possibly existing factory-audio-AUX-input or a FM-modulator.



Specifications:



BATT/ACC range7V – 25V
Stand.by power drain<10mA
Power0.7A@12V
Power consumption2.4W
Video input0.7V˜1V
Video input formatsPAL/NTSC
RGB-video amplitude0.7V with 75 Ohm impedance
Temperature range-40°C to +85°C
Weight195g
Dimensions182 x 24 x 100 mm (B x H x T)


Remember that in some states it is illegal to use the video in motion while driving!


The manufacturer of this item, and the administrator of this site will not be responsible for any damage to persons or property caused by improper use or in terms contrary to the laws.

RenaultEspace, Megane 3, Scenic 3
CategoryRear View Camera Interfaces, Video integration
