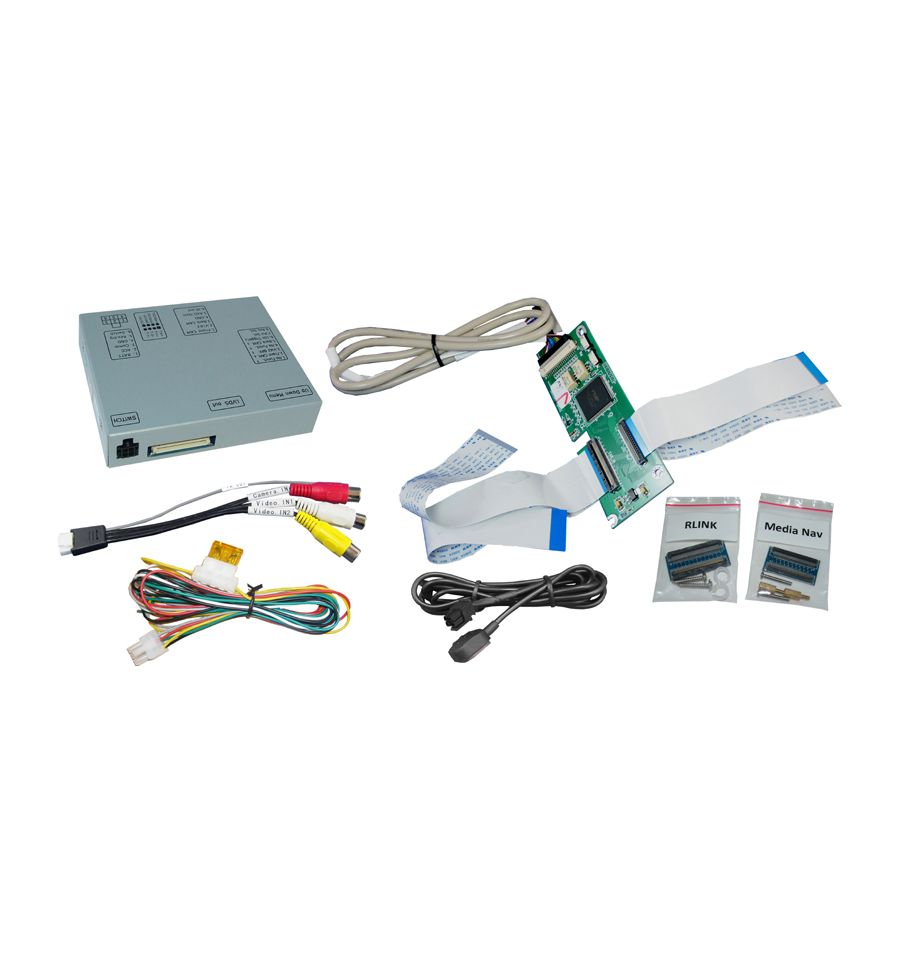

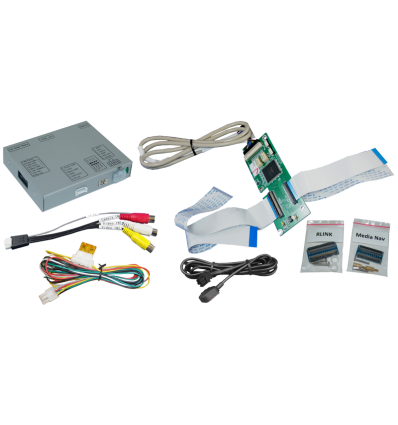

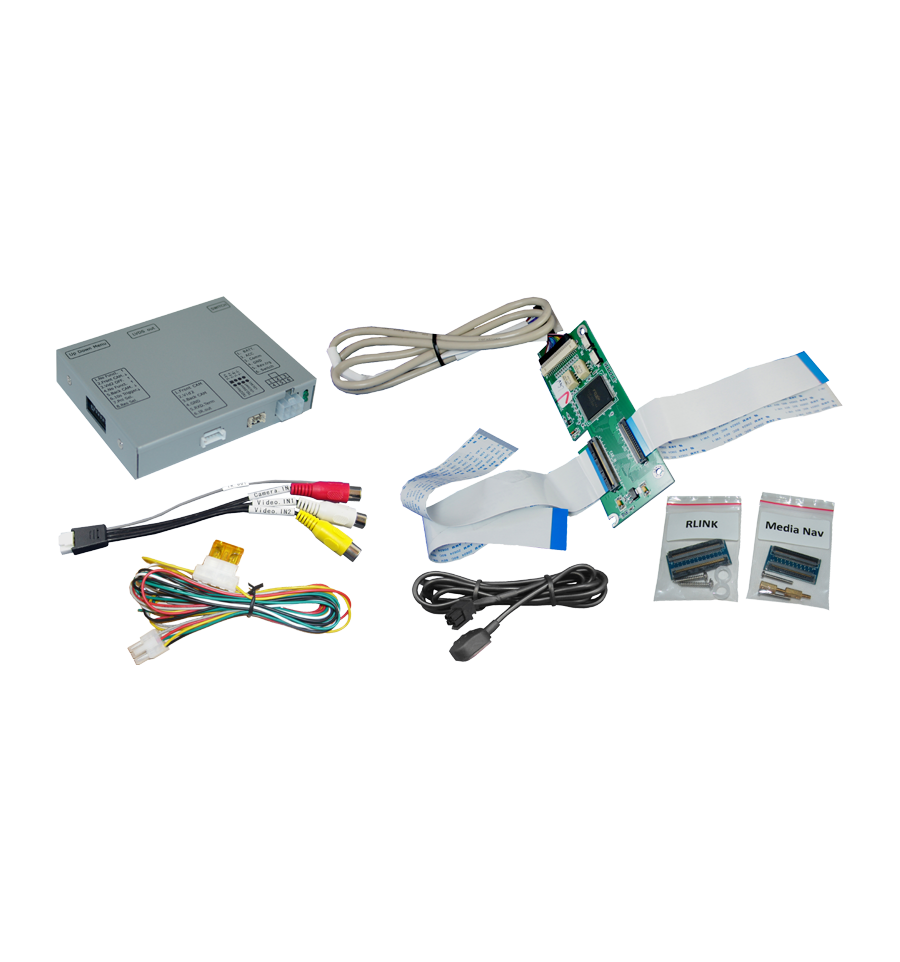

RVC Interface for front and rear view camera for Renault R-LINK and MediaNav.
RVC Interface for front and rear view camera for Renault R-LINK and MediaNav.
This interface allows you to integrate a rear view and a front view camera to your car factory fitted screen. Once connected it gives you an additional video input to connect an in car DVD player, games console iPod video, digital TV tuner.
Product features:
- Video-insertion for factory-infotainment systems
- 1 Rear camera input CVBS
- 2 video-inputs for after-market devices (e.g. DVD-Player, DVB-T tuner, .) or front camera
- Automatic switching to rear-view camera input on engagement of reverse gear
- Manual Switching to Front Camera by Keypad
- Video-in-motion (ONLY for connected video-sources)
- Activatable Parking Guide Lines for Rear-View Camera (not all vehicles)
- AV-inputs PAL/NTSC compatible
Compatibility:
| Model | Radio / Navigation |
| Captur MY 2015 >2019 | R-LINK- 7inch monitor MediaNav only til about 09/2019 (MODEL NO: LAN52xxWRx) |
| Clio MY 2014 >2019 | |
| Megane 2016 > | |
| Kangoo MY 2014 > | |
| Master MY 2015 > | |
| Megane MY 2013 >2015 | |
| Trafic MY 2015 > | |
| Twingo MY 2013 > | |
| ZOE MY 2013 > | |
| Laguna 2014 > | |
| Other vehicles with R-LINK |
Limitations:
| Video only | The interface inserts ONLY video signals into the infotainment. For inserting Audio signals either the possibly existing factory audio-AUX-input or a FM-modulator can be used. If 2 audio sources shall be connected to the infotainment, an additional electronic is necessary to switch them. |
| Factory rear-view camera | Automatically switching-back from inserted video to factory rear-view camera is only possible while the reverse gear is engaged. To delay the switch-back an additional electronic part is required. |
Specifications:
| BATT/ACC range | 7V – 25V |
| Stand.by power drain | <25mA |
| Power | 200mA |
| Video input | 0.7V˜1V |
| Video input formats | PAL/NTSC |
| Temperature range | -40°C to +85°C |
| Dimensions video-box | 113 x 22 x 96mm (W x H x D) |
| Dimensions CAN-box | 73 x 22 x 45mm (W x H x D) |
Connectors:
- Video-insertion: ribbon cable
- Power: open cable ends
- Video-input (2x): RCA female connector
- Rear-view camera-input: RCA femaleconnector
Remember that in some states it is illegal to use the video in motion while driving!
The manufacturer of this item, and the administrator of this site will not be responsible for any damage to persons or property caused by improper use or in terms contrary to the laws.
| Renault | Captur, Twingo, Trafic, Scenic, Megane 3, Megane, Master, Kangoo, Espace, Clio |
| Category | Rear View Camera Interfaces, Video integration |
