Reverse camera input interface + OBD coder for Volkswagen RNS315 RNS510 RNS310 RCD510

Reference CI-RL-MFD3-O-VW

Condition: New

RVC- reverse camera input for connection of any video source to the factory navigation system. For Volkswagen RNS315 RNS510 RNS310 RCD510. OBD coder included

Car electronic experts since 1990

Valutazione: Scrivi per primo una recensione!

RVC- reverse camera input for connection of any video source to the factory navigation system. For Volkswagen RNS315 RNS510 RNS310 RCD510. OBD coder included

Product features:

Plug and play interface
Integrated into the vehicle infotainment
rear-view camera input (only NTSC cameras)
Automatic switching to rear-view camera input
OBD coder included
After the first use on a vehicle, the coder is personalized to this vehicle (head-unit) and can be used unlimited times to code or reverse coding on this vehicle.

Compatibility:

Compatible with all Volkswagen with:

RNS510
RNS315

( min. requirement navi version B min SW 1100)

RNS310
RCD510

(Fits ONLY vehicles with 26pin connector on the rear of the head-unit)

Limitations:

Factory TV tuner	Must NOT be installed
After-market rear-view camera	Compatible only to the NTSC cameras.
Coding	The head-unit must be coded to rear-view camera per diagnosis computer or the RNS510, RNS315 and the RCD510 with our optional available OBD-coders OBD-VW-R-xx (for OPS, too).
OPS	On vecicles with OPS (optical parking system) the OPS control box must be coded to rear-view camera per diagnosis computer.

Specifications(interface-box)

Operation voltage	10.5 – 14.8V
Stand-by power drain	0mA
Operation power drain	200mA
Power consumption	2.8W
Temperature range	-30°C to +80°C
Weight	53g
Measurements	72 x 23 x 50mm (W x H x D)

Connections (Interface-Box)

Male 12pin Molex connector

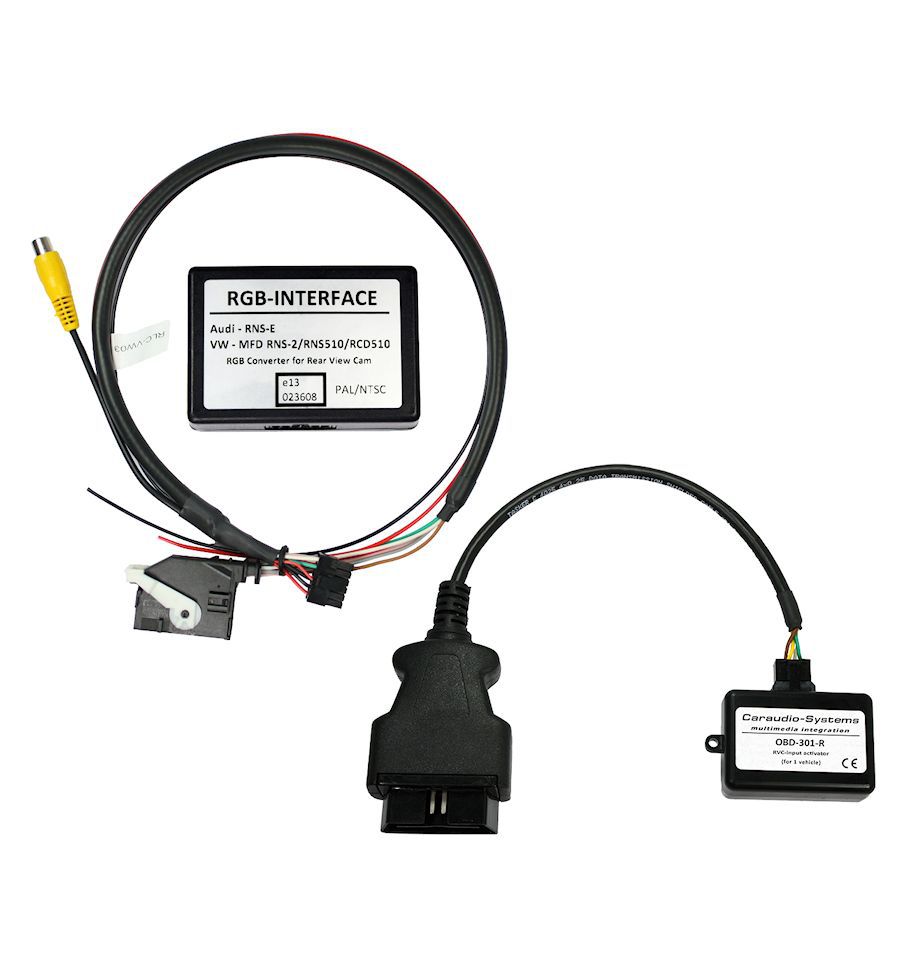

Delivery contents:

Interface-box
Plug 5 play Harness
OBD coder

Important note:
The activator is associated to the chassis number (VIN) of the car at the first connection, and therefore it can be reused exclusively on that car. This item cannot be returned.

Volkswagen	Amarok, Lupo, Multivan, Passat, Phaeton, Polo 4 rest. 9N3, Polo 5 6R, Scirocco, Sharan, Tiguan, Touareg, Touran, Transporter T5, LT, Jetta, Beetle, Bora, Caddy, California, CC, Crafter, Eos, Fox, Golf 7 (5G), Golf Plus, Golf V (1K), Golf VI (5K)
Category	Rear View Camera Interfaces

CI-RL-MFD3 EN

Download (1.19M)
