Reverse camera input interface for VW MIB STD2 PQ /+NAV or MIB/MIB2 Expand

Reverse camera input interface for VW MIB STD2 PQ /+NAV or MIB/MIB2

Volkswagen Volkswagen

CI-RL-MIB2-VW

New

Reverse camera input (RVC-input) for connection of a rear-view camera to the factory navigation system. For VW  MIB STD2 PQ /+NAV - Composition Media / Discover Media or MIB/MIB2 - High/Discovery Pro and Standard/Composition Media

More details

€ 169,00

tax incl.

Reverse camera input (RVC-input) for connection of a rear-view camera to the factory navigation system. For VW MIB STD2 PQ /+NAV - Composition Media / Discover Media or MIB/MIB2 - High/Discovery Pro and Standard/Composition Media

Product features:

  • Plug and play interface
  • Integrated into the vehicle infotainment
  • 1 rear-view camera input NTSC
  • Automatic switching to rear-view camera input


Compatibility:


ModelloRadio/Navigazione
Amarok (2H) 09/2017-05/2020

MIB STD2 PQ/+NAV - Composition Media/Discover Media - All-in-One 2DIN head-unit with 1x SD-slot vertical left or 2x SD-slots vertical left+right and CD-drive above the 6.33inch monitor.

 Beetle (5C) MY 2015-
Caddy4 (SA) MY 2016-2020
Scirocco3 (13) MY 2016-
Sharan (7N) MY 2016-
Transporter T6 (SG) 07/2015-10/2019
Arteon (3H) MY 2018-MIB/MIB2/MIB3 Standard and High - Composition Media and Discover Pro - DIN head-unit with separate 5.8inch, 6.5inch, 8inch or 9.2inch monitor.
Crafter (SZ/SY) MY 2017-
Golf7 (5Q) MY 2012-2019
Golf7 Sportsvan (AM1) MY 2014-2020
Passat (B8) MY 2016-
Polo5 (6C) MY 2014-2017
Polo6 (AW1) MY 2018-
T-Cross (C1) 04/2019-
T-Roc (A11) MY 2018-
  Taigo (CS) 09/2021-
Tiguan2 (AD1) MY 2016-
Touran (5T) MY 2016-
Transporter T6.1 (SH) 10/2019-

NOT compatible to Composition Media with part numbers:

  • 3Q0035812
  • 3Q0035819
  • 3Q0035819A
  • 3Q0035819B
  • 3Q0035819C
  • 3Q0035820
  • 3Q0035820A
  • 3Q0035820B
  • 3Q0035820C
  • 5G0035812
  • 5G0035819
  • 5G0035819A
  • 5G0035819B
  • 5G0035819C
  • 5G0035820
  • 5G0035820A
  • 5G0035820B
  • 5G0035820C


Limitations:

Factory OPS
Must be installed
After-market rear-view cameraCompatible only to the NTSC cameras
CodingVehicle must be coded by diagnosis computer to rear-view camera. On some vehicles this is only possible if the vehicle is equipped with a factory optical park distance system with graphical display on the monitor.

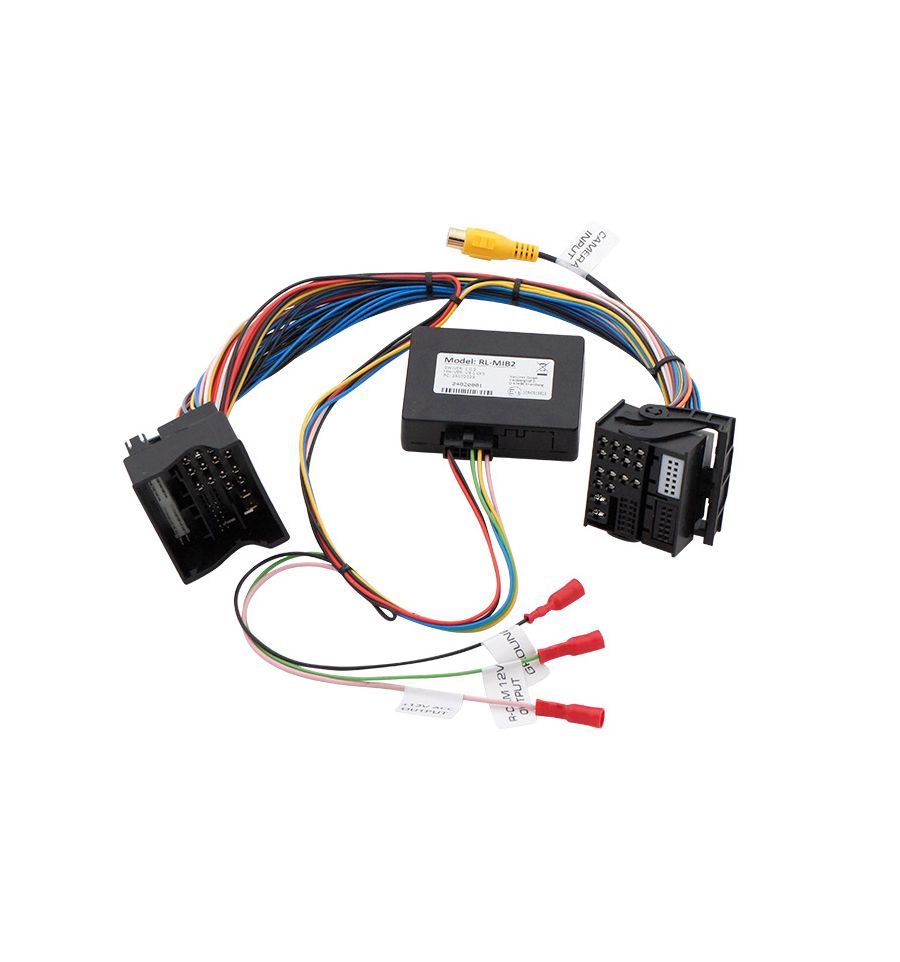

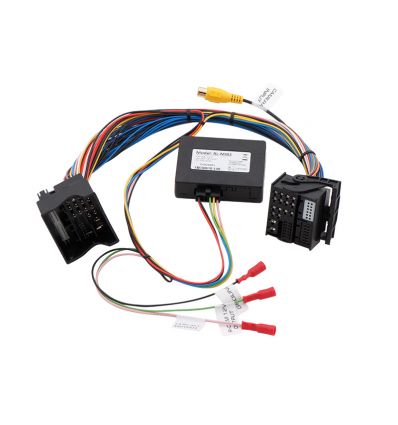

Delivery contents:
  • Interface-box
  • Harness
CategoryRear View Camera Interfaces
