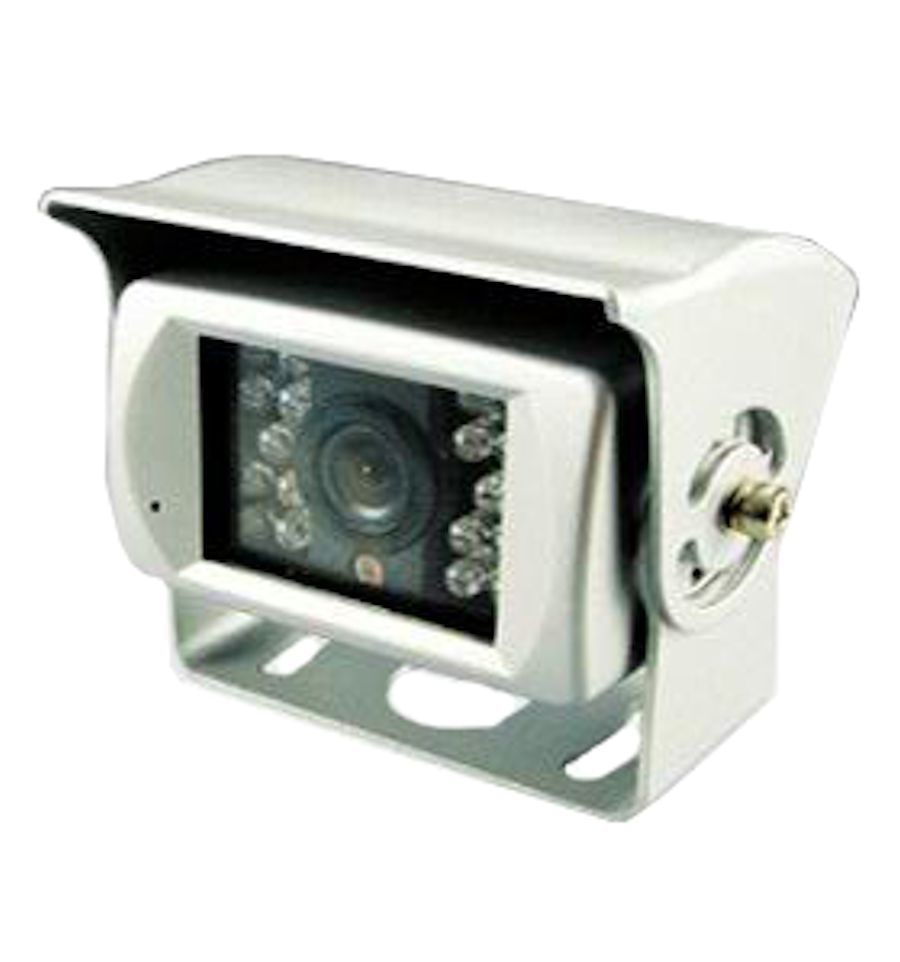

Mount-on shutter camera with 18 IR LEDs, microphone
CI-CAM-P-AE90P
New
Mount-on shutter camera PAL 1/4 inch CCD with wide 120° diagonal angle, 18 IR LEDs for nightvision and audio. Switchable image mirror function.
Valutazione: Scrivi per primo una recensione!
1/4 inch PAL CCD mount-on shutter camera with wide 120° diagonal angle, 18 LEDs for nightvision, microphone and awning.
Features:
Dimensions:
Limitations:
In order for the camera to work, an additional system of cable, not included in the delivery, is necessary: it is CI-CAB-RV4-**S, available in different length (10cm, 5m, 10m, 15m, 20m, 40m).
The 4pin Mini-DIN plug with screw thread and CV allocation can be directly connected to a camera-switch or to some monitor for rear-view system. For the stand-alone working of other products, the optional adapter to RCA CI-CAB-4P-RCA is required.
IMPORTANT:
Don't forget to order the cable system CI-CAB-RV4-**S, and eventually the adapter to RCA CI-CAB-4P-RCA!
Features:
- Mount-on shutter camera with awning
- 20m cable with cinch connector
- 18 IR-LED for nightvision
- Sensor type 1/4 Colour Sony CCD
- Image system PAL
- Resolution (pixels) H×V 500×582
- TV-Lines 420
- 2.6mm, F2.0 lens
- 0.001 Lux
- Angle: horizontal 90°, vertical 70°, diagonal 120°
- Mirrored image (optional)
- IP 69
- 4pin Mini-DIN connector
- 100cm cable with rubber grommet
- Power supply 12V ±10%
- Power consumption 1.5W
- Range of working temperature: -30°C to +70°C
- Range of storage temperature: -40°C to +80°C
- Weight 380g
Dimensions:
- Overall (L×W×D) 82×73×58 mm
Limitations:
In order for the camera to work, an additional system of cable, not included in the delivery, is necessary: it is CI-CAB-RV4-**S, available in different length (10cm, 5m, 10m, 15m, 20m, 40m).
The 4pin Mini-DIN plug with screw thread and CV allocation can be directly connected to a camera-switch or to some monitor for rear-view system. For the stand-alone working of other products, the optional adapter to RCA CI-CAB-4P-RCA is required.
IMPORTANT:
Don't forget to order the cable system CI-CAB-RV4-**S, and eventually the adapter to RCA CI-CAB-4P-RCA!
| Category | Cameras RVC |
