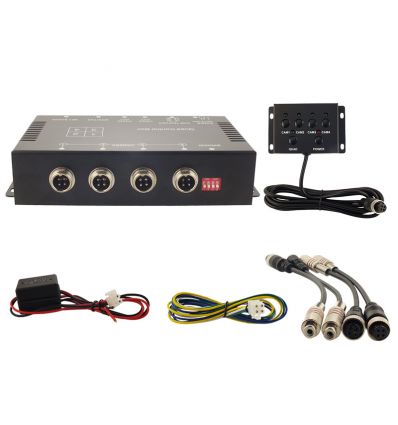

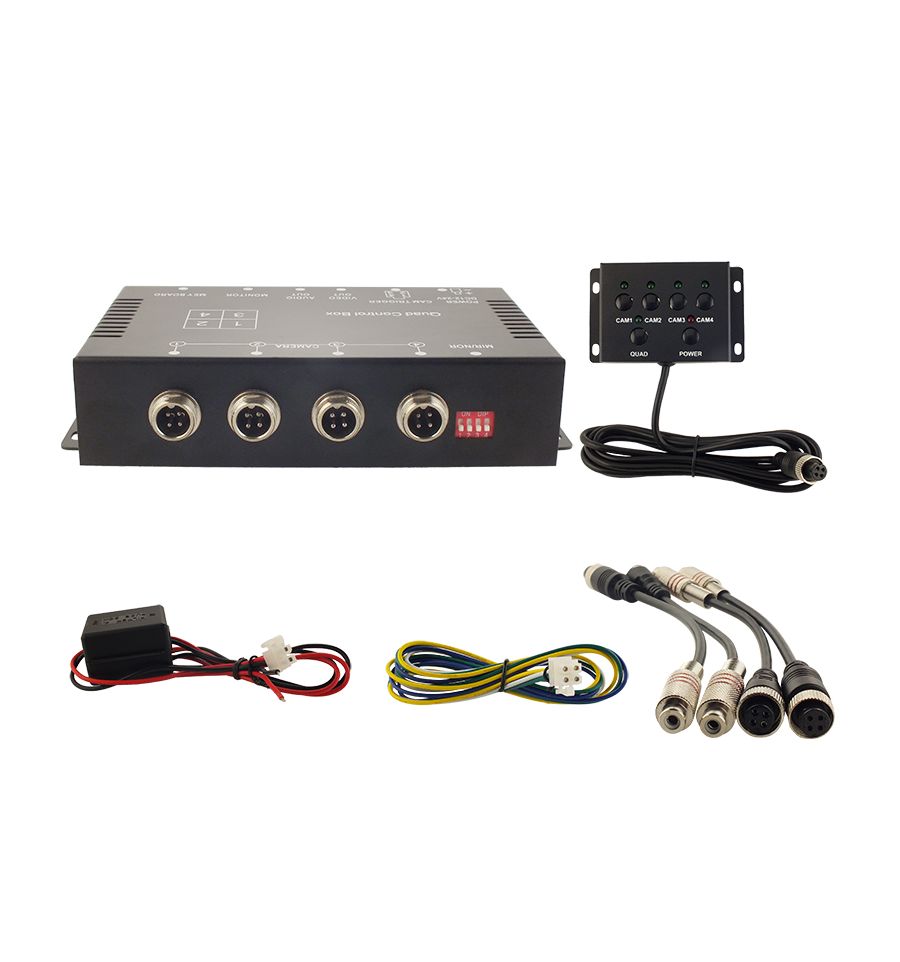

Camera switch-box 4 inputs, 1 output, PAL/NTSC
CI-SW-4SCR-T
New
4 video-inputs, 4pin screw incl. RCA adapters. Video-output RCA. Single, dual, tripple or quad picture by control pad or triggers. Compatible with PAL and NTSC.
Valutazione: Scrivi per primo una recensione!
The switch-box allows to connect 4 different cameras to one monitor and displays single-, dual-, triple- or quad image.
Product features
- Single-, dual-, triple- or quad image display
- Audio output in single display mode
- Switchable by control pad
- Switchable by active triggering
- PAL/NTSC compatible
- 4x video inputs with 4-pin screw
- 4x 4-pin cinch adapter cables
- Video/audio output by RCA/cinch
Limitations
Video input formats: All connected video-sources must provide the same output-signal (PAL or NTSC), otherwise there is no consistent correct setting possible!

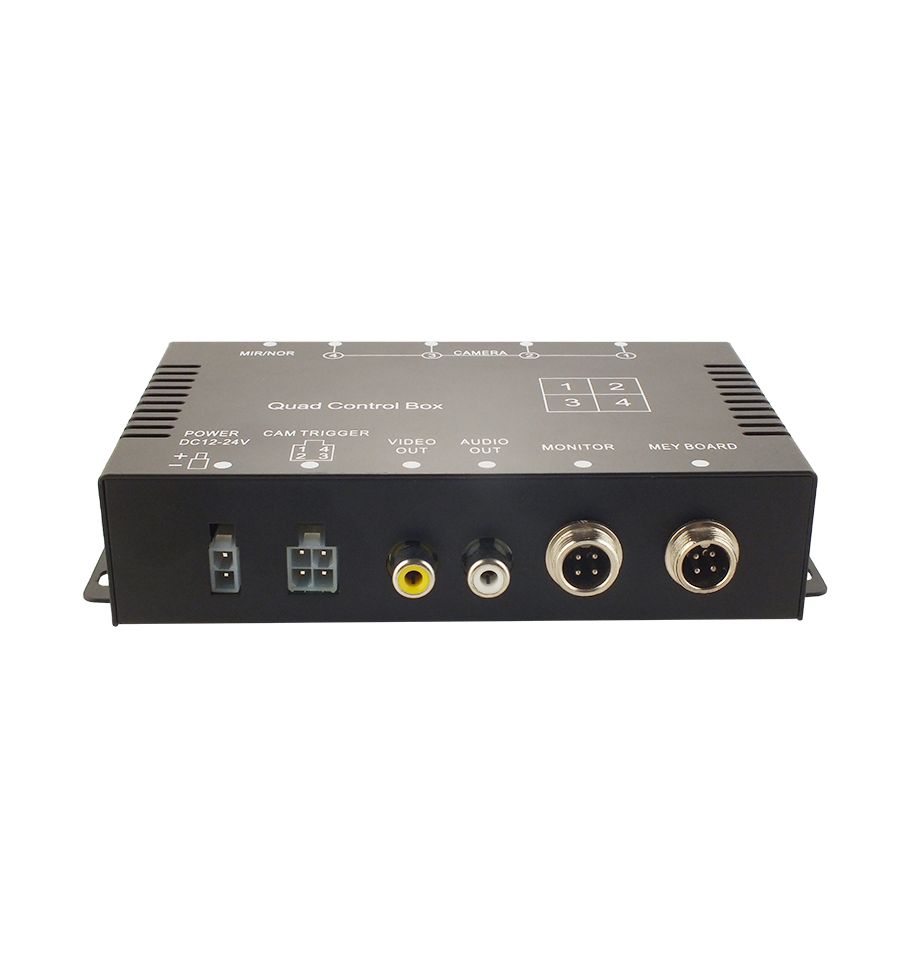

Connectors
- Power and trigger wires: Open cable ends

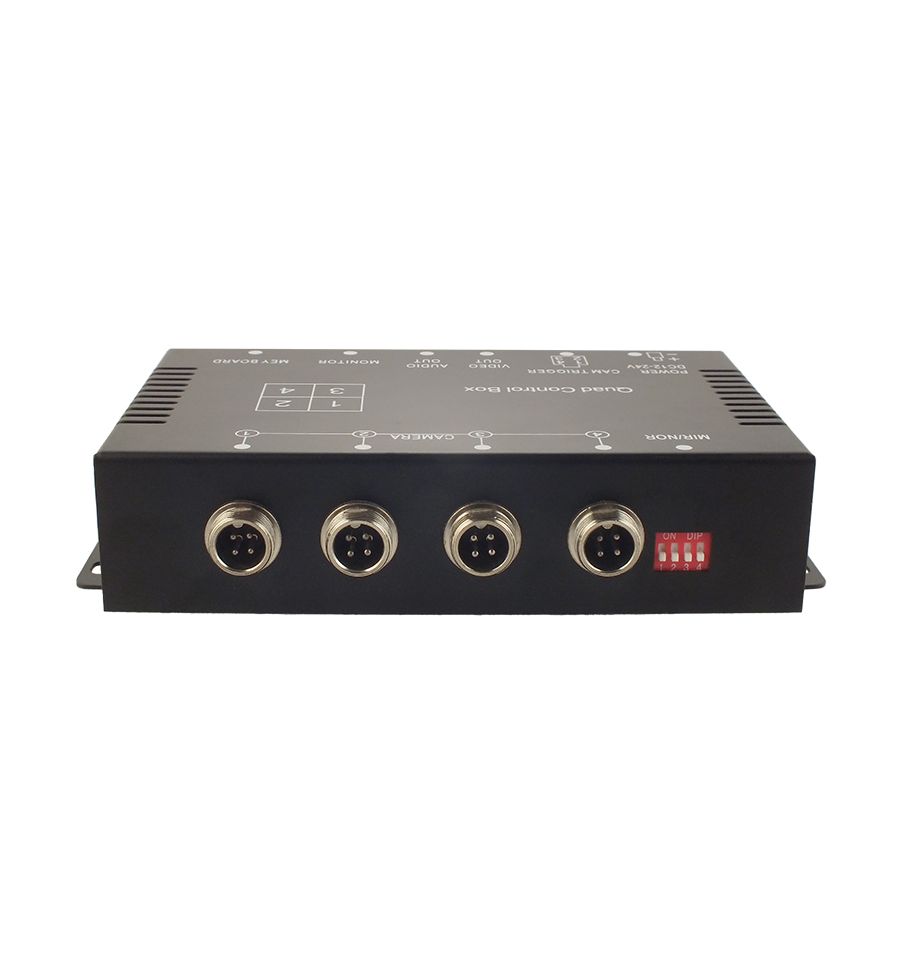

- Kamera-input (4x): 4-pin screw cap
- Audio-output: RCA connector
- Video-output: RCA connector
Specifications
| BATT/ACCrange | 12V - 24V |
| Stand by power drain | <13mA |
| Power | 134mA |
| Video input formats | PAL/NTSC |
| Temperature range | -40°C to +85°C |
| Dimensions box | 165 x 32 x 110 mm (W x H x D) |
| Category | Accessories, Rear View Camera Interfaces |
