New
Reverse camera AHD NTSC, 160°, mini mount-on,mirrored (ON/OFF), horizontal-vertical (ON/OFF) guide lines
CI-CAM-H115
New
Mini mount-on camera AHD NTSC with wide angle 160°, black, mirrored (ON/OFF), horizontal-vertical (ON/OFF), guide lines (ON/OFF)
Valutazione: Scrivi per primo una recensione!
Mini mount-on camera AHD NTSC with wide angle 160°, black, mirrored (ON/OFF), horizontal-vertical (ON/OFF), guide lines (ON/OFF)
Easy mounting cause of cable guided screwed tube.
Product features:
- Mini camera AHD in metal housing (black)
- Cable-guided thread tube with counternut
- System cable with throughput, e.g. for reverse signal
- Horizontal mount-under and vertical mounting is possible
- Mirroring can be switched off - suitable also as front camera
- Sensor type AHD 536 CMOS 1/4 inch PAL
- Resolution 720p
- Frame rate up to 25fps
- Bezel F1.2
- Light sensitivity 0.02Lux
- Angle horizontal=130°, vertical=80°, diagonal=160°
- Guide-lines can be switched off
- Protection class IP69
- Suitable for permanent operation (ACC)
- Mini 4pin-3V system harness with integrated throughput wire (blue)

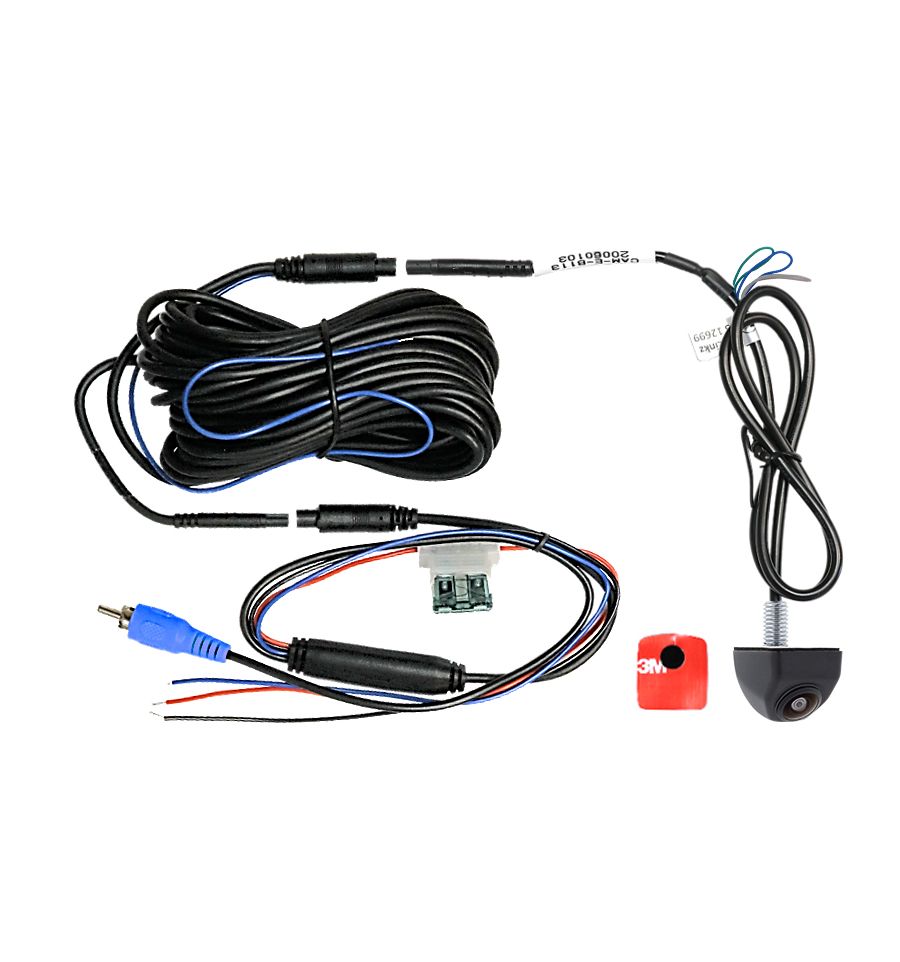

- 10.20m total system cable length, consists of:
- 1.70m cable fixed on camera to female 4pin-3V (Diameter 5mm)
- 8.00m extension cable male 4pin-3V to female 4pin-3V
- 0.50m adapter male 4pin-3V to male RCA and power wires (open ends)
Dimensions
| Camera housing (without thread tube) | 25 x 27.7 x 22mm (W x D x H) |
| Diameter camera connector | 5mm |
| Total cable length | 10.20m |
Specifications
| Operating voltage | +12V/24V DC (6~28V) |
| Current consumption | max. 50mA |
| Operating temperature | -30°C to +75°C |
| Storage temperature | -40°C to +80°C |
| Category | Cameras RVC |
