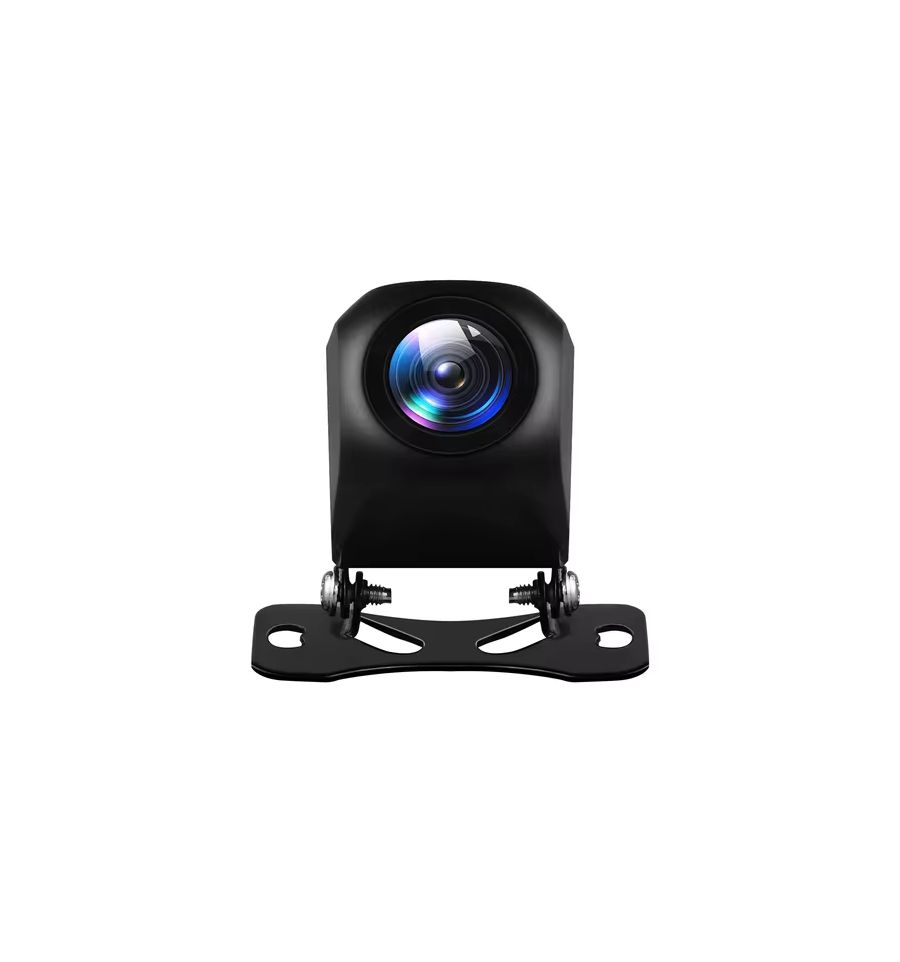

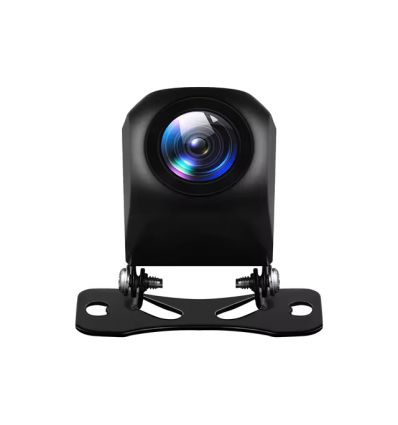

AI Reverse camera pedestrian and vehicle detection NTSC 1/3 inch CMOS

AI Reverse camera pedestrian and vehicle detection with acoustic and visual alarm

Product features:

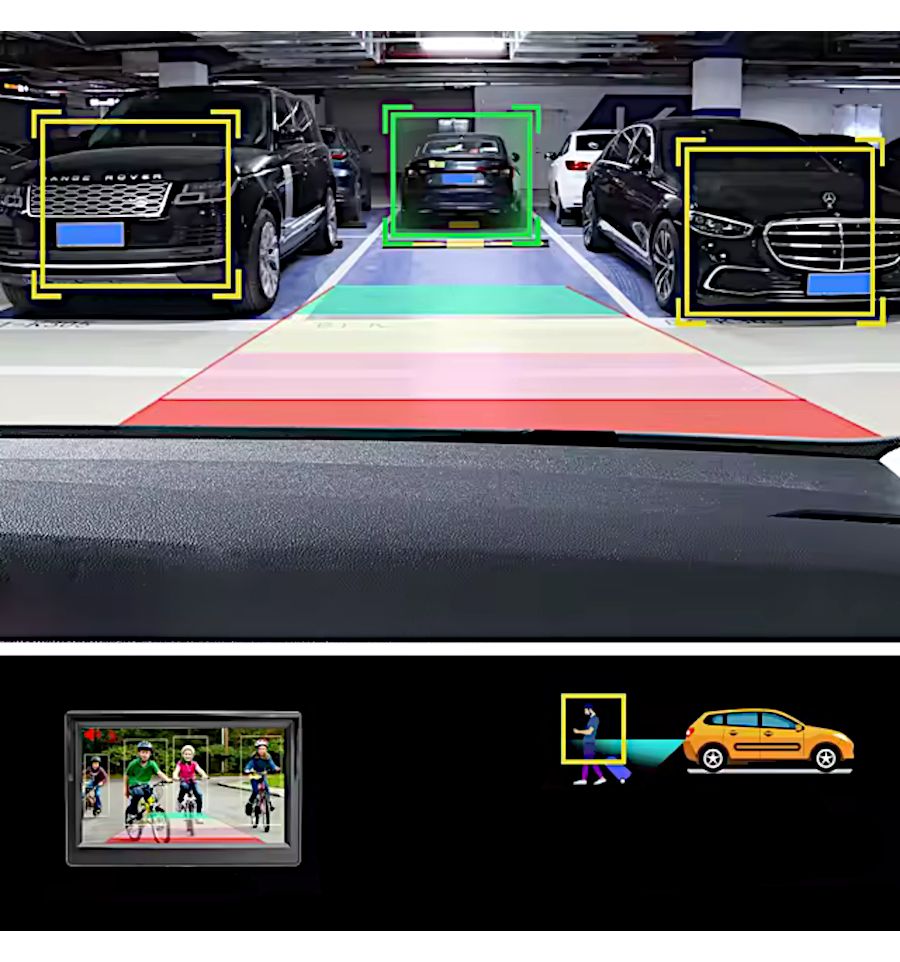

• AI pedestrian detection with visual and acoustic alarm
• AI Vehicle Detection with Visual and Acoustic Alarm
• Sensor-type 1/3inch CMOS NTSC colour
• Car camera lens angle: 120 degree

• Effective Pixels: 1920（H）* 1080（V）
• Guide lines
• IP 68
• Power supply 10V ~ 15V
• Current Consumption: less than 100mA

• Video-connection RCA male connector
• Cable-length 6mt
• System cable with throughput, e.g. for reverse signal
• Dimensions of housing without support WxDxH 22x23x32mm

8 operating modes that can be set:

• AHD 720P/25fps

• AHD 720P/30fps
• AHD 1080P/25fps
• AHD 1080P/30fps
• CVBS-NTSC
• CVBS-PAL
• TVI 720P/25fps

• TVI 720P/30fps

Kit Content:

• AI Camera

• Power wiring with switch

• RCA video extension cable 6mt

• Buzzer for acoustic and visual alarm signal

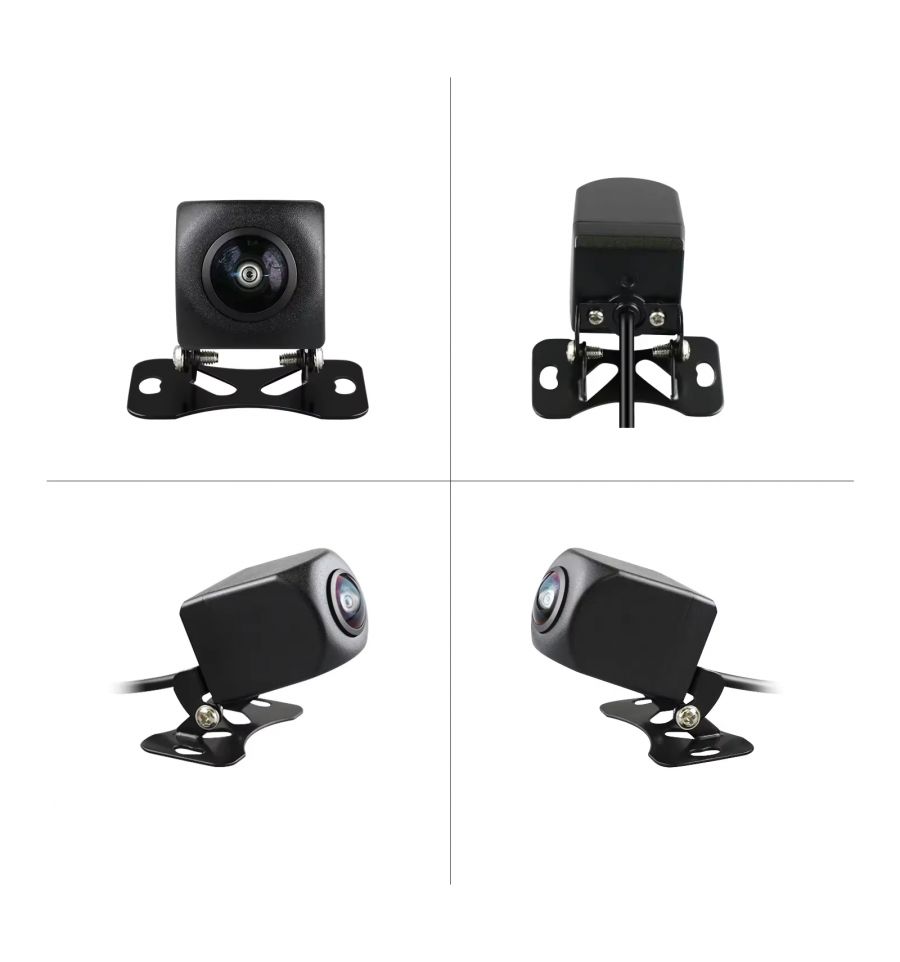

• Support bracket with fixing screws
