Fiat Ulysse RT3-N3 CAN, RT4 video in motion

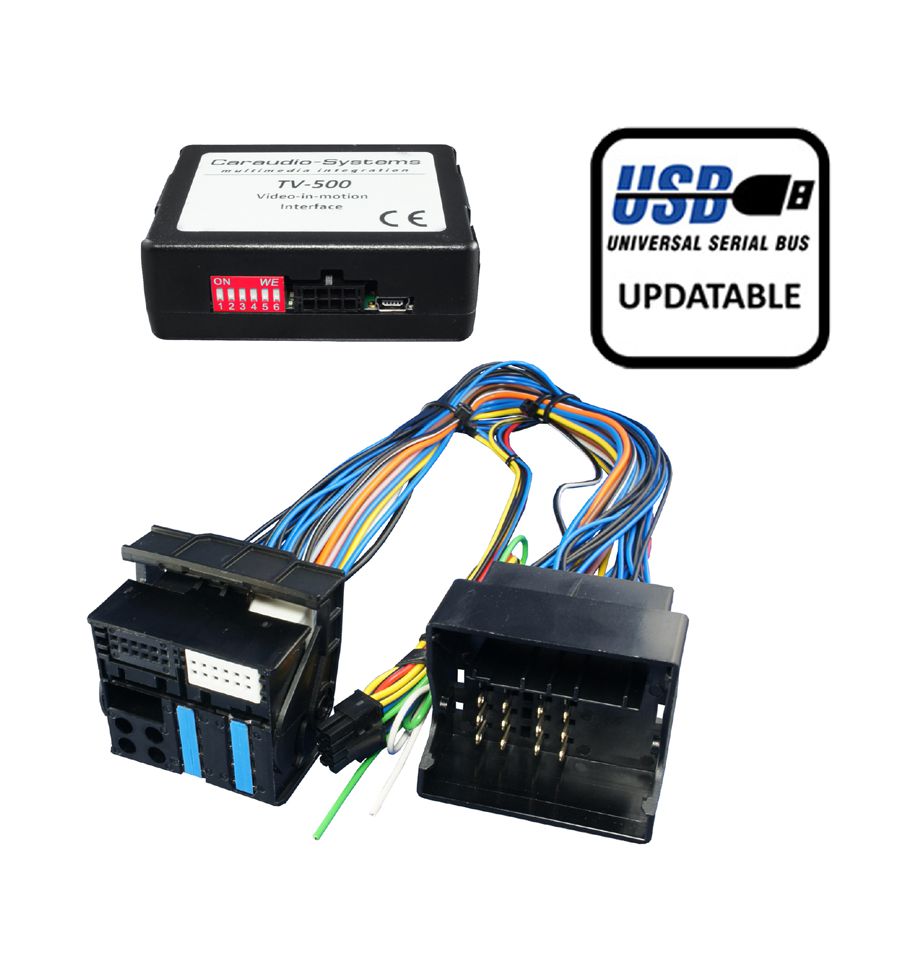

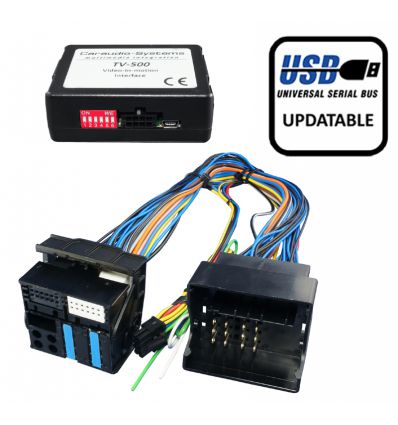

Video-in-motion interface, for example for MP3-menu in upgraded DVD players or rear-view cameras.Fiat Ulysse RT3-N3 CAN, RT4

Compatibility:RT3-N3 CAN, RT4

Delivery contents:

• Video in Motion interface
• Plug&play harness


Exception:

Vehicles with RT3-N3 CAN and RT4 without Source-button
On vehicles with RT3-N3 Can or RT4 navigation system without Source-button the included green cable is used to activate the video-in-motion function.
Connect a switch to the green cable and connect the green cable to +12V ACC.
● +12V = TV-Free is activated
● 0V = TV-Free is not activated
Note: As long as the video-in-motion function is activated, the navigation will NOT be working!

Remember that in some states it is illegal to use the video in motion while driving!

The manufacturer of this item, and the administrator of this site will not be responsible for any damage to persons or property caused by improper use or in terms contrary to the laws
