VOLKSWAGEN Crafter Ball-shape rear-view camera with black holder, CCD and LEDs Expand

VOLKSWAGEN Crafter Ball-shape rear-view camera with black holder, CCD and LEDs

Volkswagen Volkswagen

CI-CAM-N-AE90-VB-VW

New

Ball-shape NTSC camera with 1/4 inch CCD sensor, 9 LEDs, audio, viewing angle 120°.
Included camera-holder for Vans in black with round edge.

More details

€ 209,00

tax incl.

1/4 inch NTSC CCD ball-shaped rear-view camera with 9 LEDs for night vision, shockproof, viewing angle horizontal 90°. Spherical holder for black Vans is included, so the camera can be perfectly installed on the round edge of the vehicle.


Compatible with:
  • Mercedes Benz Sprinter
  • Volkswagen Crafter
  • many other vans

NOTE:
Please check the size indications and the pictures of the camera for the compatibility with the vehicle, before buying!


Features:
  • Van-specific ball-shape camera
  • 9 LEDs
  • Sensor type 1/4 Colour Sony CCD
  • Image system NTSC
  • Resolution (pixels) H×V  510×492
  • 2.6mm lens, F2.0
  • 0.1 Lux
  • TV-Lines 420
  • Angle: horizontal 90°, vertical 75°, diagonal 120°
  • Mirrored image (optional)
  • Audio
  • IP 68
  • 4pin Mini-DIN plug with screw thread and CV allocation
  • 90cm cable with rubber grommet
  • Supply voltage 12V ± 10%
  • Power consumption 1.5W
  • Range of working temperature: -30°C to +70°C
  • Range of storage temperature: -40°C to +80°C
  • Weight 154g

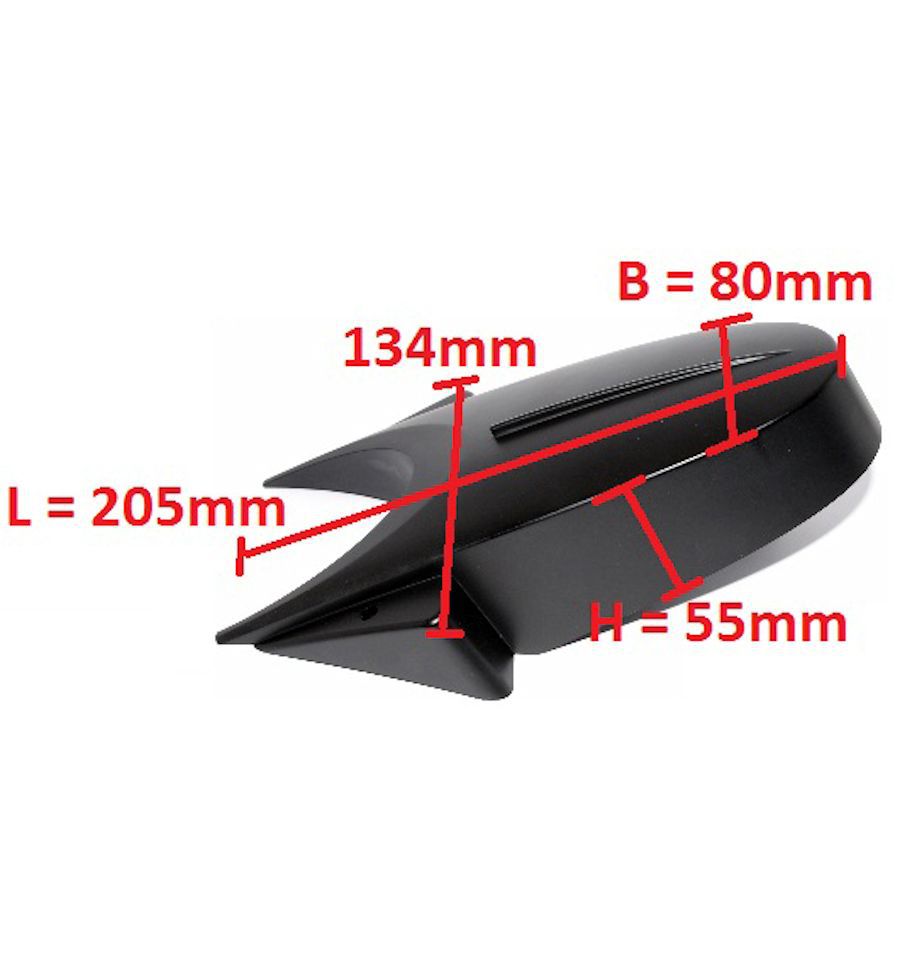

Dimensions:
  • Camera (L×W×D)  78×63×51 mm
  • Holder (L×W×D)  205×80×55 mm
  • Installation face width  134 mm

Limitations:
In order for the camera to work, an additional system of cable, not included in the delivery, is necessary: it is CI-CAB-RV4-**S, available in different length (10cm, 5m, 10m, 15m, 20m, 40m).
The 4pin Mini-DIN plug with screw thread and CV allocation can be directly connected to a camera-switch or to some monitor for rear-view system. For the stand-alone working of other products, the optional adapter to RCA CI-CAB-4P-RCA is required.



IMPORTANT:
Don't forget to order the cable system CI-CAB-RV4-**S, and eventually the adapter to RCA CI-CAB-4P-RCA!
