VOLKSWAGEN Crafter Ball-shape rear-view camera with white holder, CCD and LEDs
CI-CAM-N-AE90-VB-W-VW
New
Ball-shape NTSC camera with 1/4 inch CCD sensor, 9 LEDs, audio, viewing angle 120°.

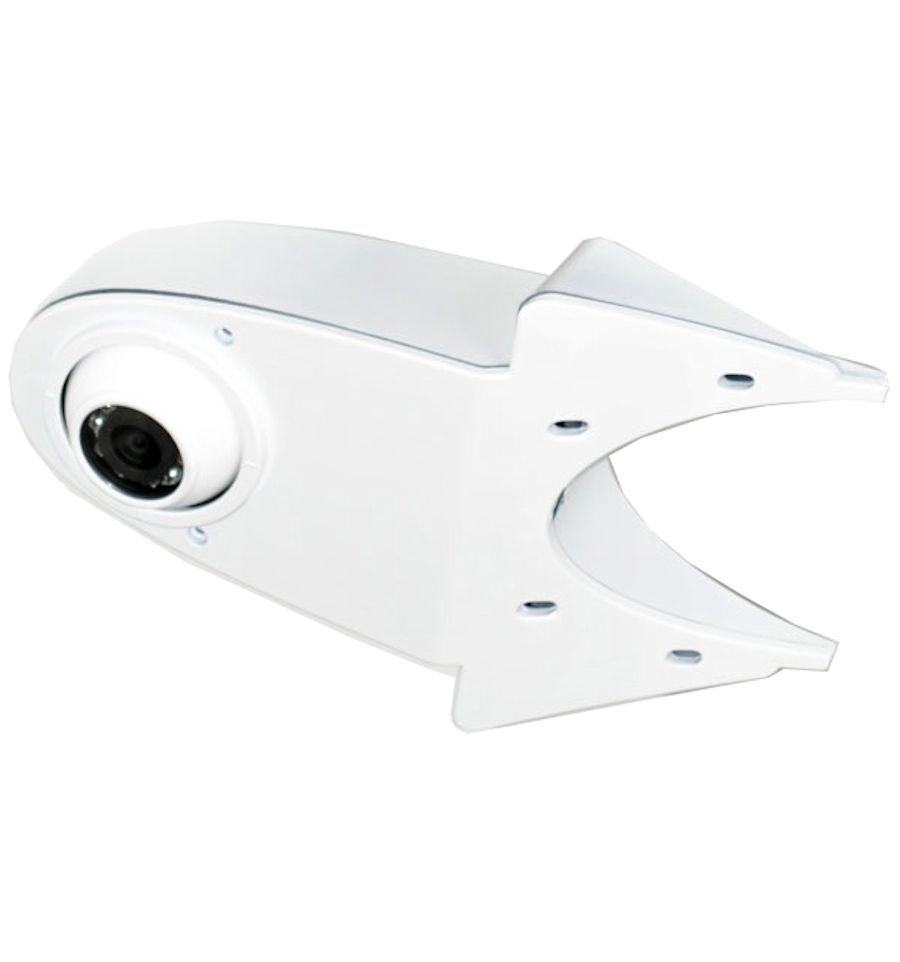

Included camera-holder for Vans in white with round edge.
Included camera-holder for Vans in white with round edge.
Valutazione: Scrivi per primo una recensione!
1/4 inch NTSC CCD ball-shaped rear-view camera with 9 LEDs for night vision, shockproof, viewing angle horizontal 90°. Spherical holder for white Vans is included, so the camera can be perfectly installed on the round edge of the vehicle.
Compatible with:
NOTE:
Please check the size indications and the pictures of the camera for the compatibility with the vehicle, before buying!
Features:
Dimensions:
Limitations:
In order for the camera to work, an additional system of cable, not included in the delivery, is necessary: it is CI-CAB-RV4-**S, available in different length (10cm, 5m, 10m, 15m, 20m, 40m).
The 4pin Mini-DIN plug with screw thread and CV allocation can be directly connected to a camera-switch or to some monitor for rear-view system. For the stand-alone working of other products, the optional adapter to RCA CI-CAB-4P-RCA is required.
IMPORTANT:
Don't forget to order the cable system CI-CAB-RV4-**S, and eventually the adapter to RCA CI-CAB-4P-RCA!
Compatible with:
- Mercedes Benz Sprinter
- Volkswagen Crafter
- many other vans
NOTE:
Please check the size indications and the pictures of the camera for the compatibility with the vehicle, before buying!
Features:
- Van-specific ball-shape camera
- 9 LEDs
- Sensor type 1/4 Colour Sony CCD
- Image system NTSC
- Resolution (pixels) H×V 510×492
- 2.6mm lens, F2.0
- 0.1 Lux
- TV-Lines 420
- Angle: horizontal 90°, vertical 75°, diagonal 120°
- Mirrored image (optional)
- Audio
- IP 68
- 4pin Mini-DIN plug with screw thread and CV allocation
- 90cm cable with rubber grommet
- Supply voltage 12V ± 10%
- Power consumption 1.5W
- Range of working temperature: -30°C to +70°C
- Range of storage temperature: -40°C to +80°C
- Weight 154g

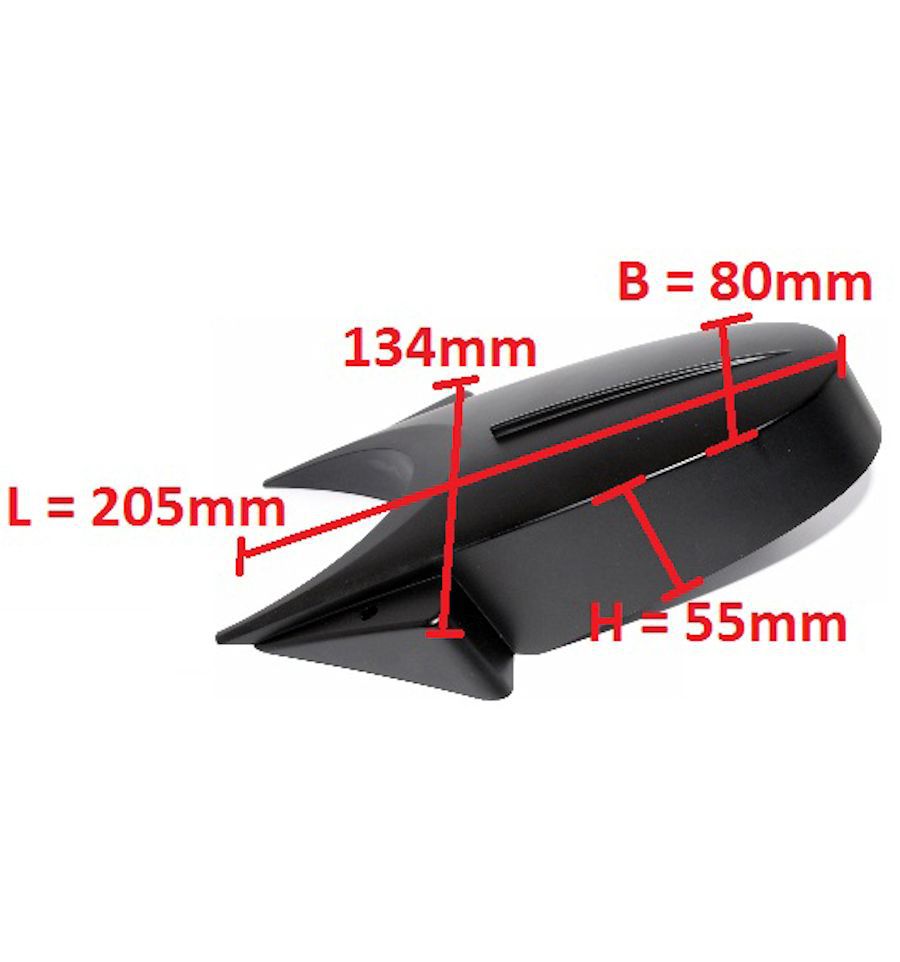

Dimensions:
- Camera (L×W×D) 78×63×51 mm
- Holder (L×W×D) 205×80×55 mm
- Installation face width 134 mm
Limitations:
In order for the camera to work, an additional system of cable, not included in the delivery, is necessary: it is CI-CAB-RV4-**S, available in different length (10cm, 5m, 10m, 15m, 20m, 40m).
The 4pin Mini-DIN plug with screw thread and CV allocation can be directly connected to a camera-switch or to some monitor for rear-view system. For the stand-alone working of other products, the optional adapter to RCA CI-CAB-4P-RCA is required.
IMPORTANT:
Don't forget to order the cable system CI-CAB-RV4-**S, and eventually the adapter to RCA CI-CAB-4P-RCA!
| Volkswagen | Crafter |
| Category | Cameras RVC |
