VOLKSWAGEN Sharan Rear-view camera exchange license-plate illumination with guide-lines and cold-white LED

Reference CI-VS3-AU24W-VW

Condition: New

Vehicle specific changeable license plate light with camera, distance lines and cold-white LED

Car electronic experts since 1990

Valutazione: Scrivi per primo una recensione!

More info
Data sheet

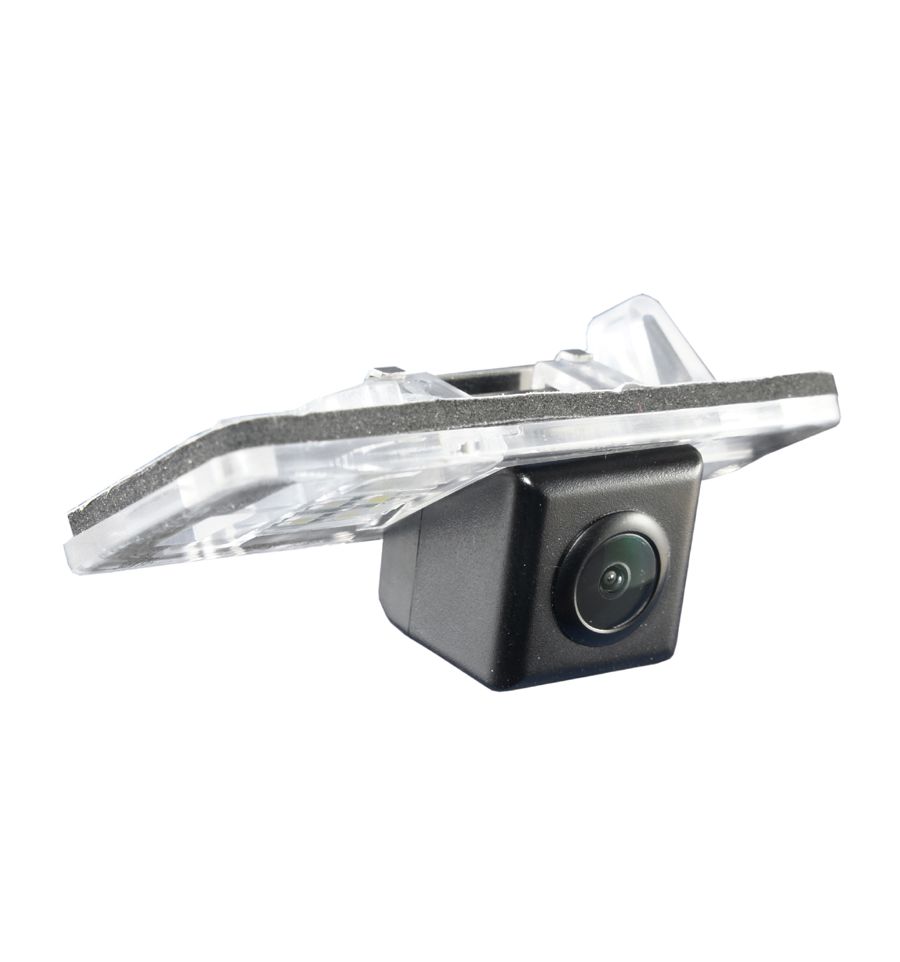

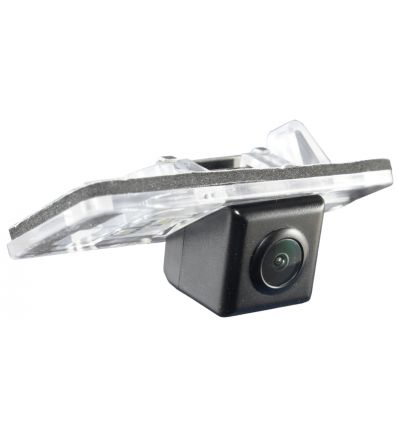

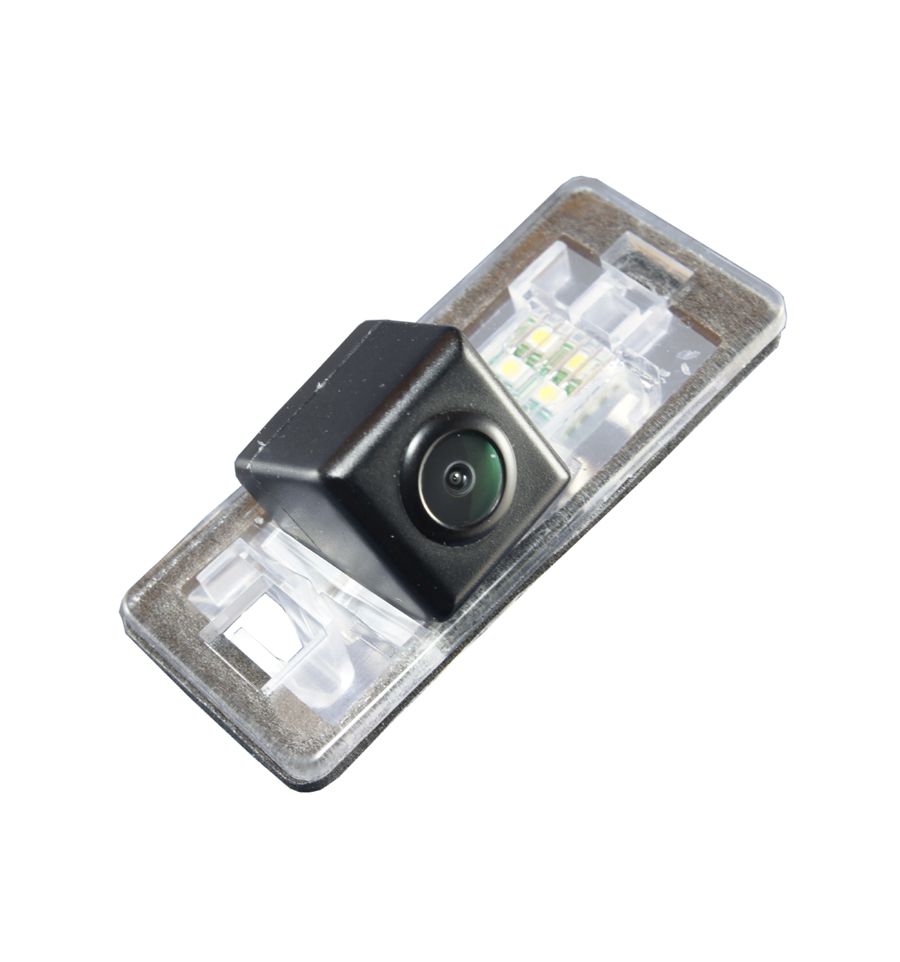

Mini-camera with vehicle specific license plate light with cold-white LED.
Simple installation due to replacement with the factory license plate light.
Professional set of system cables in adequate length and with automotive connectors.
Due to connectors with a small diameter the cable can easily be laid.
An additional cable core for signal transfer e.g. power supply or reversing signals.
Guidelines can be disabled.

Compatible with:

Volkswagen Sharan 2013

NOTE:
Please check the size indications and the pictures of the camera for the compatibility with the vehicle, before buying!

Properties:

1/3inch CMOS NTSC sensor
Resolution 800 TV lines
0.01 Lux min illumination
F1.2 aperture
Angle diagonal 170°, horizontal 120°, vertical 100°
Mirrored image (fixed)
Parking guide lines, optional switchable
Protection class IP69K
Cold-white LED
1.8m Camera-cable with 4pin-3V system-female connector (diameter 5.9mm)
8m Extension cable (4pin-3V) with wire for signal throughput
0.4m System-connector system cable 4pin-3V with RCA connector and fuse

Dimensions:

Overall L/W/D 76 x 32.5 x 38 mm
Cover glass L/W/D 76 x 32.5 x 19 mm
Build-in hole L/D 58 x 25 mm
Hole spacing 54 mm

Operating voltage	12V DC (6V~26V)
Current consumption	50mA (35~55mA)
Operating temperature	-30°C to +75°C
Weight incl. cable approx.	198g

Volkswagen	Sharan
Category	Cameras RVC
