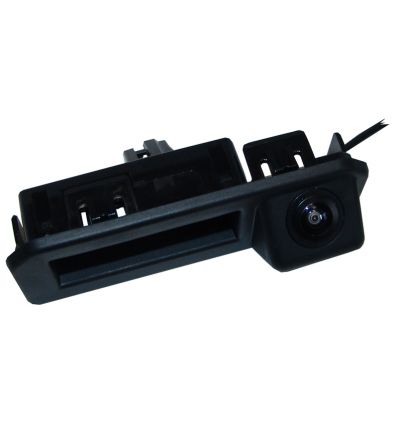

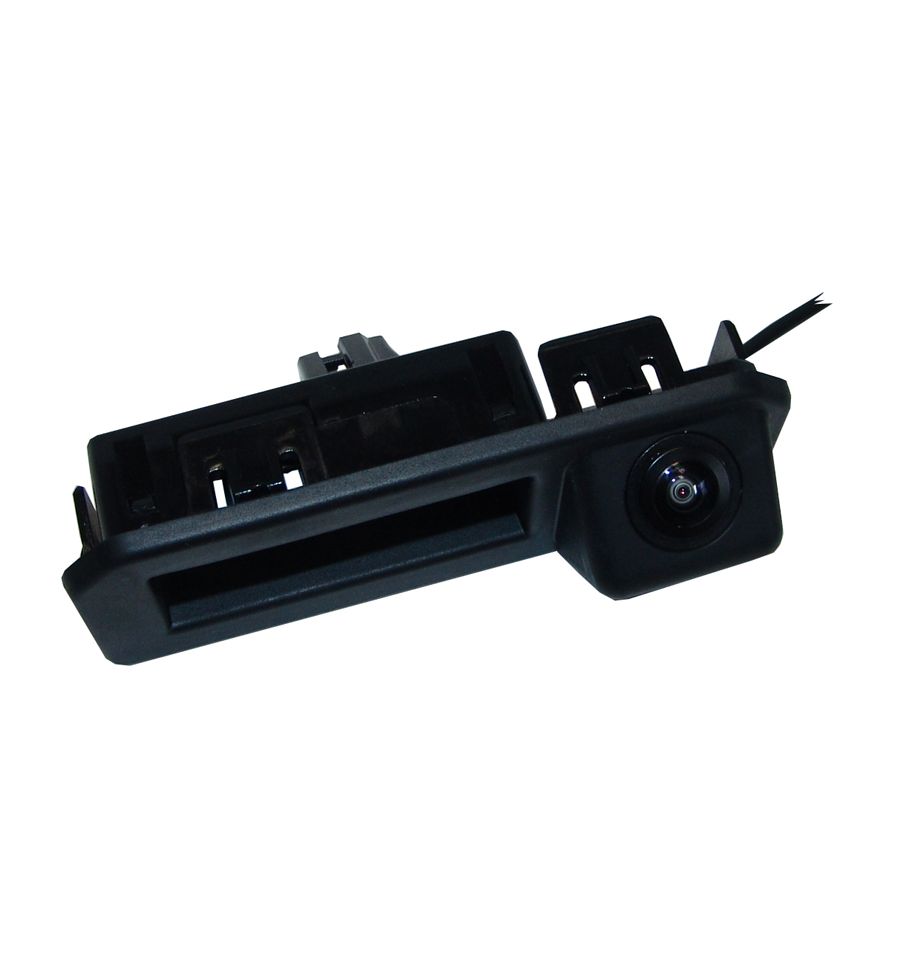

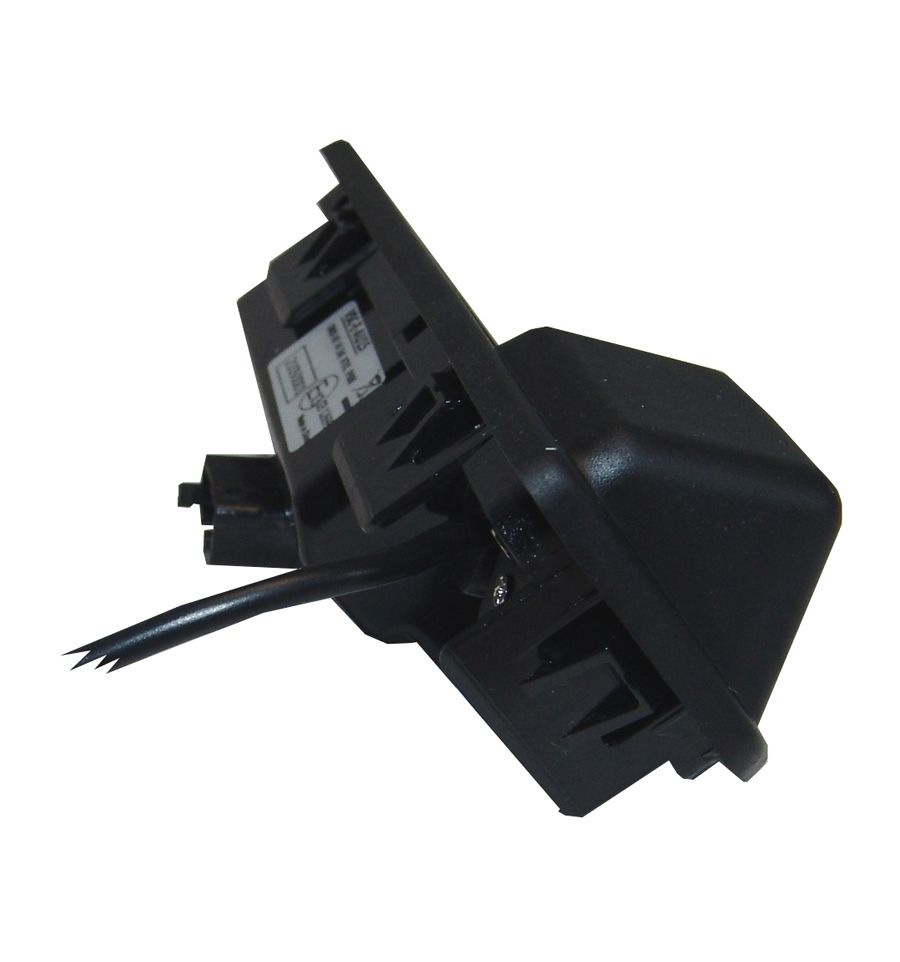

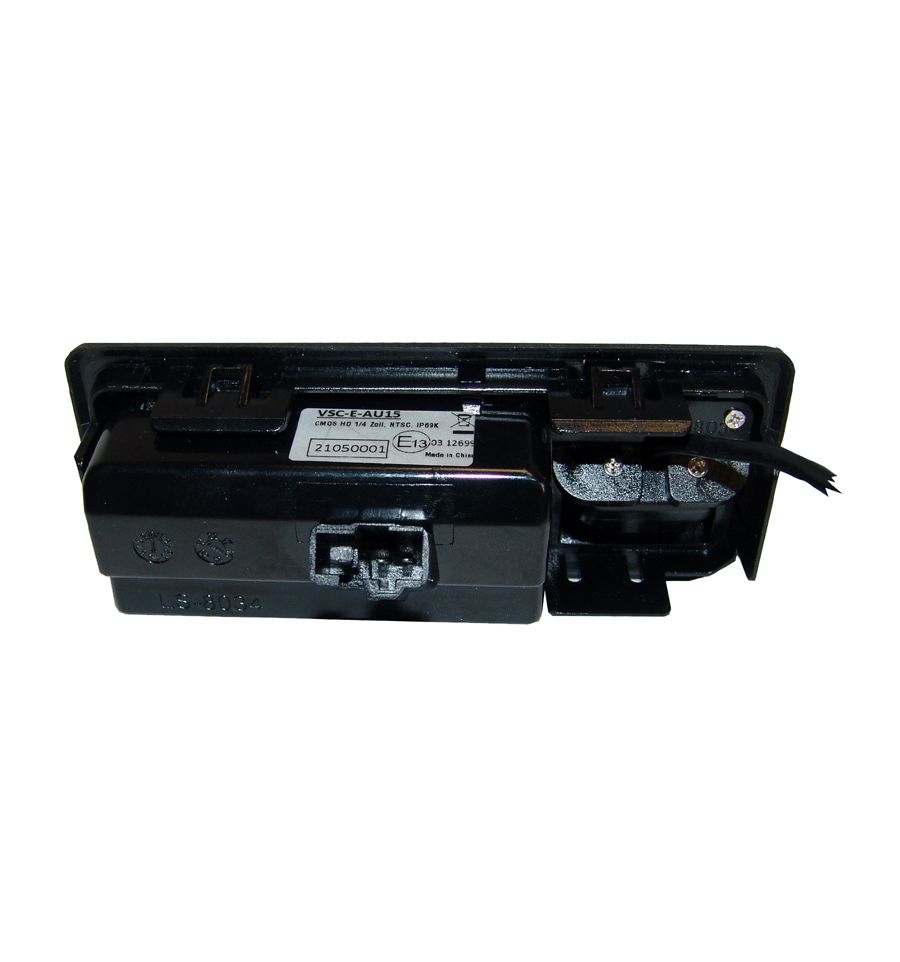

Volkswagen from MY2016 exchange rear door opener handle with integrated camera and switchable guide-lines

Vehicle-specific exchange rear door opener handle with integrated camera and switchable guide-lines. Easy assembling by replacing the factory rear door opener handle. Professional connector cable with enough length and automotive plug connection. Easy to lay the cable due to a small cable diameter. Additional wire for signal transfer, e.g. power supply or rear-view camera signal.

Compatible with:

• ID.4 (E21) since 12/2020
• Jetta7 (BU) since 2022
• T-Cross (C11) since 04/2019
• Touareg3 (CR) since 07/2018

NOTE:
Please check the size indications and the pictures of the camera for the compatibility with the vehicle, before buying!


Features:

• Sensor type 1/3inch CMOS PC3089
• Picture format NTSC
• Resolution 720 x 480 Pixel
• Min illumination 0.4 Lux
• Angle horizontal 140°, vertical 105°, diagonal 180°
• Mirrored image (fixed)
• Parking guide lines, optional switchable
• System cable with throughput, e.g. for reverse signal
• Protection class IP69K
• Colour of rear door opener handle and camera black

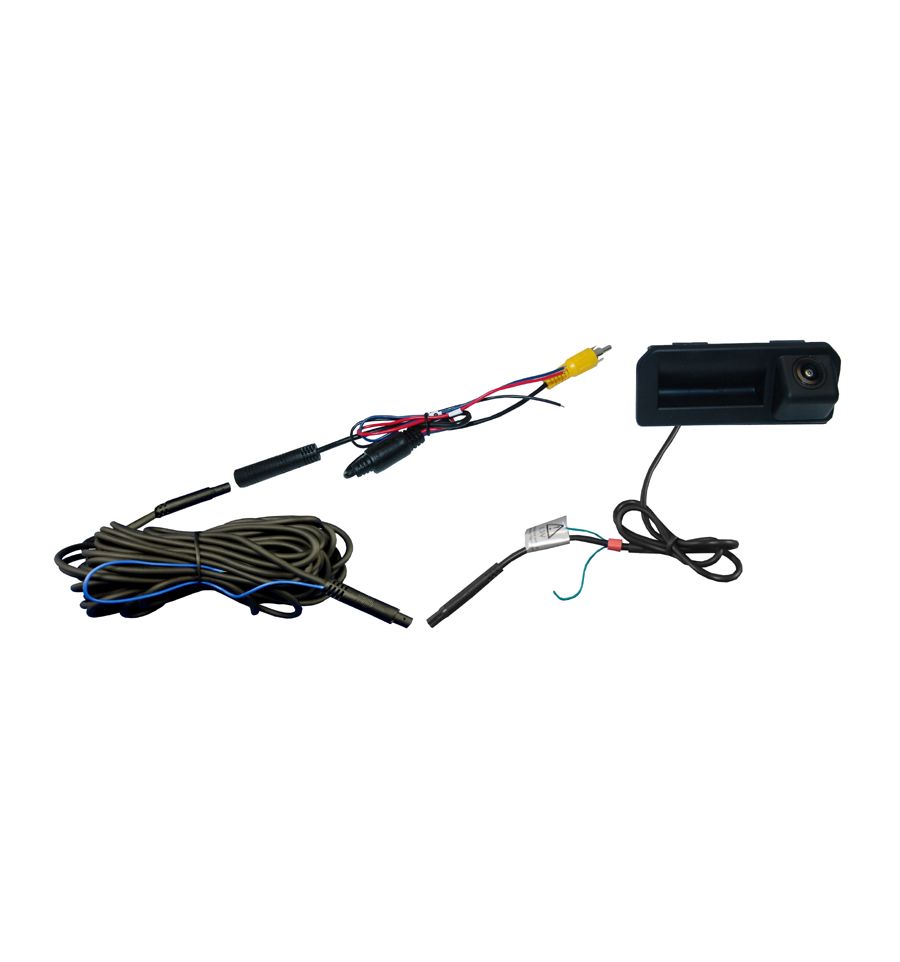

• Total cable length 10m
• Video connector RCA male connector
• System connector camera 4pin BM
• Diameter camera connector 5mm

Dimensions:

• Overall 111 x 44 x 58mm (W x H x T)

• Installation opening 105 x 40mm (W x H)
