Nuovo Telecamera retromarcia AHD NTSC miniaturizzata Allarga

Telecamera retromarcia AHD NTSC miniaturizzata

CI-CAM-H115

Nuovo

Telecamera retromarcia AHD NTSC miniaturizzata a colori, ampio angolo di visuale da 160°

Maggiori dettagli

€ 149,00

IVA incl.

Telecamera retromarcia AHD NTSC miniaturizzata a colori, ampio angolo di visuale da 160°

Configurabile come telecamera frontale-retromarcia ed orizzontale-verticale


Caratteristiche:

  • Mini camera AHD in metal housing (black)
  • Cable-guided thread tube with counternut
  • System cable with throughput, e.g. for reverse signal
  • Horizontal mount-under and vertical mounting is possible
  • Mirroring can be switched off - suitable also as front camera
  • Sensor type AHD 536 CMOS 1/4 inch PAL
  • Resolution 720p
  • Frame rate up to 25fps
  • Bezel F1.2
  • Light sensitivity 0.02Lux
  • Angle horizontal=130°, vertical=80°, diagonal=160°
  • Guide-lines can be switched off
  • Protection class IP69
  • Suitable for permanent operation (ACC)
  • Mini 4pin-3V system harness with integrated throughput wire (blue)

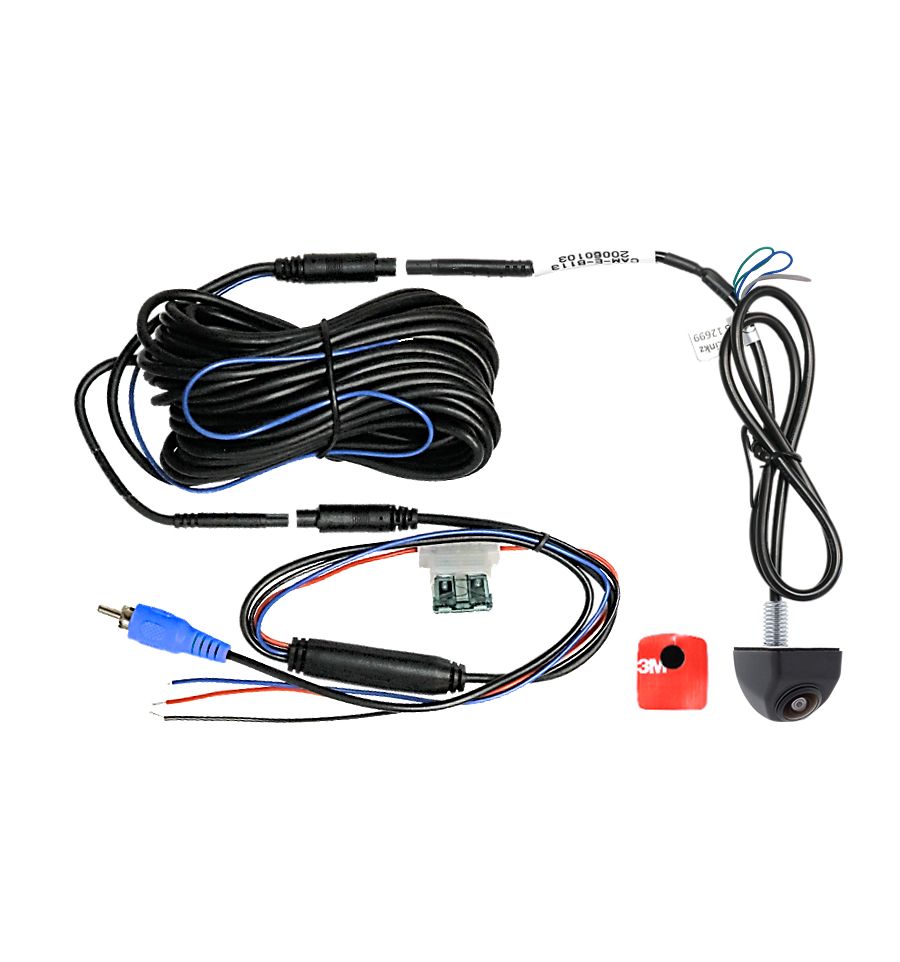

  • 10.20m total system cable length, consists of:
    - 1.70m cable fixed on camera to female 4pin-3V (Diameter 5mm)
    - 8.00m extension cable male 4pin-3V to female 4pin-3V
    - 0.50m adapter male 4pin-3V to male RCA and power wires (open ends)

Dimensions

Camera housing (without thread tube)25 x 27.7 x 22mm (W x D x H)
Diameter camera connector5mm
Total cable length10.20m

Specifications

Operating voltage+12V/24V DC (6~28V)
Current consumptionmax. 50mA
Operating temperature-30°C to +75°C
Storage temperature-40°C to +80°C
CategoriaTelecamere
