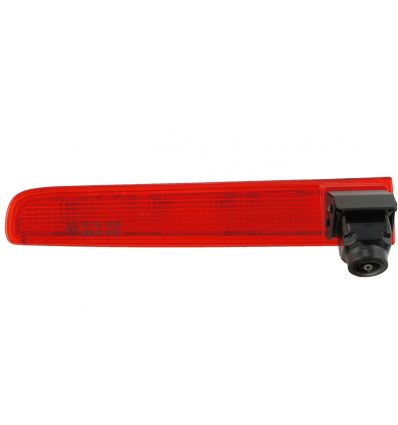

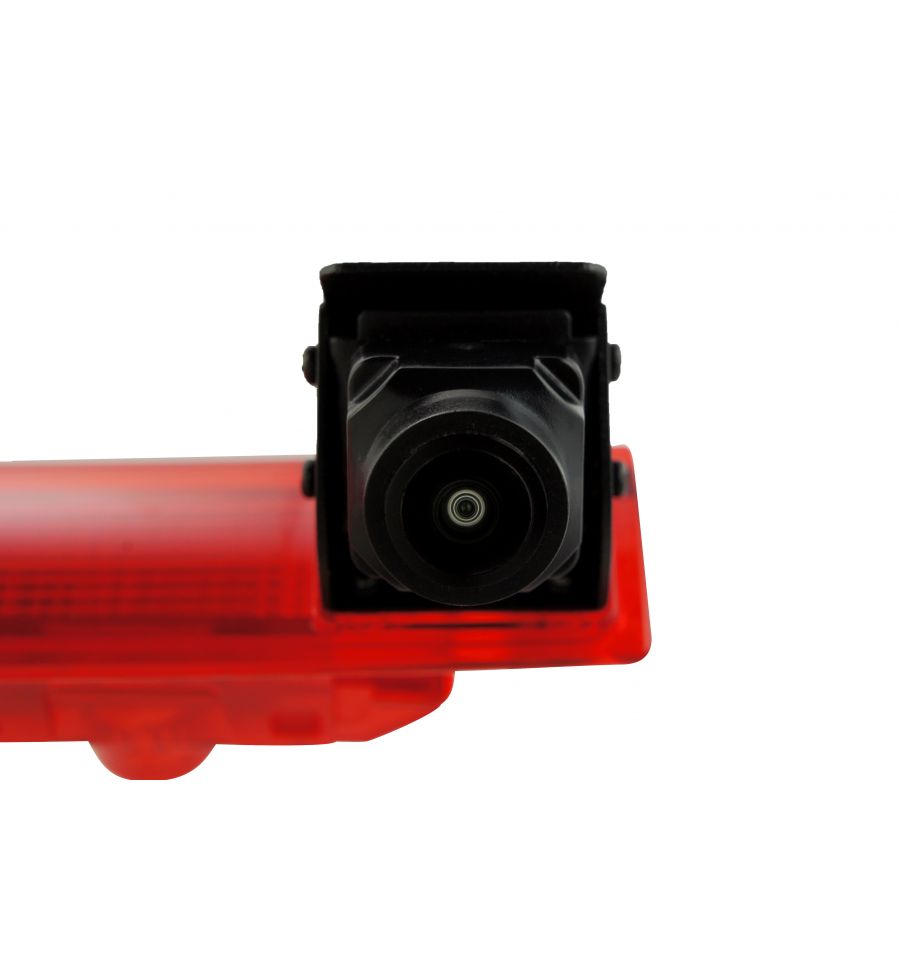

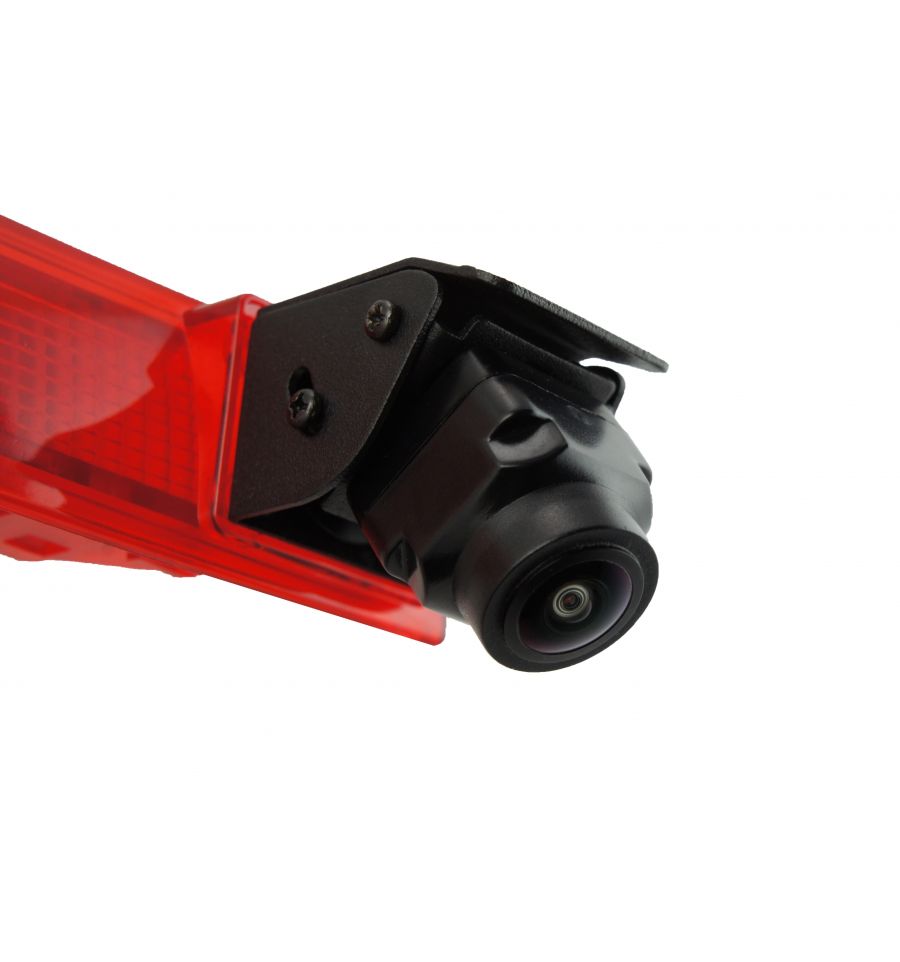

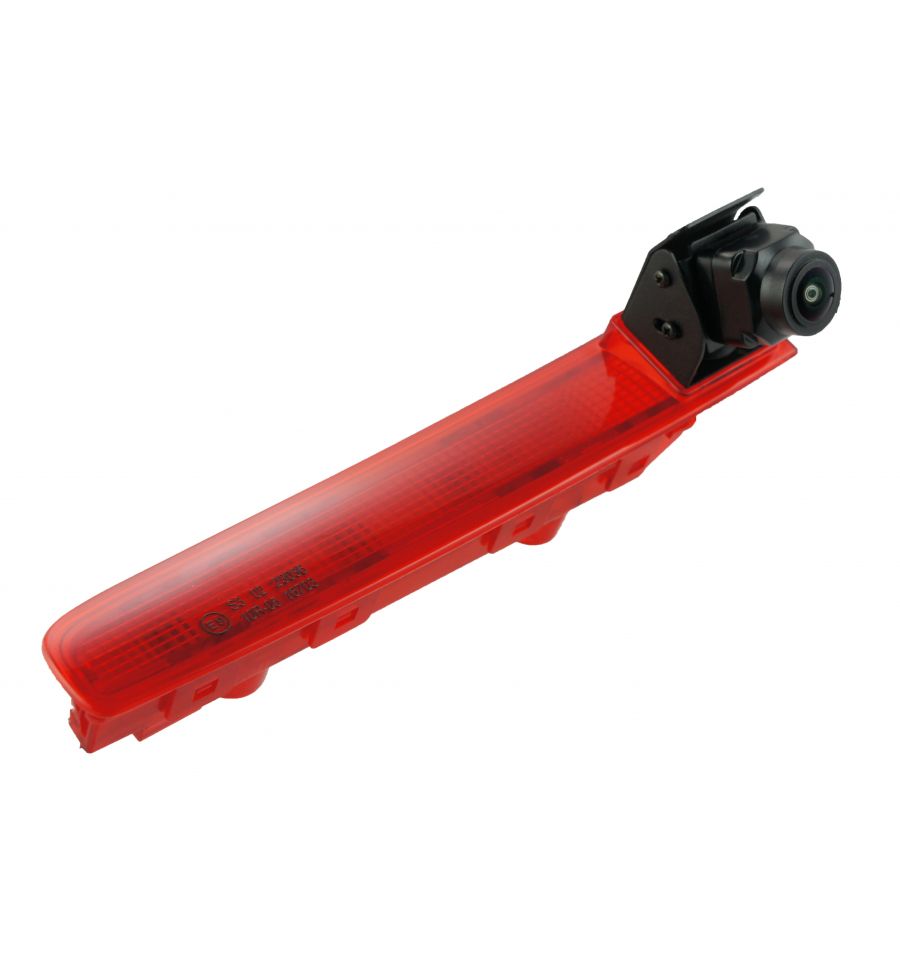

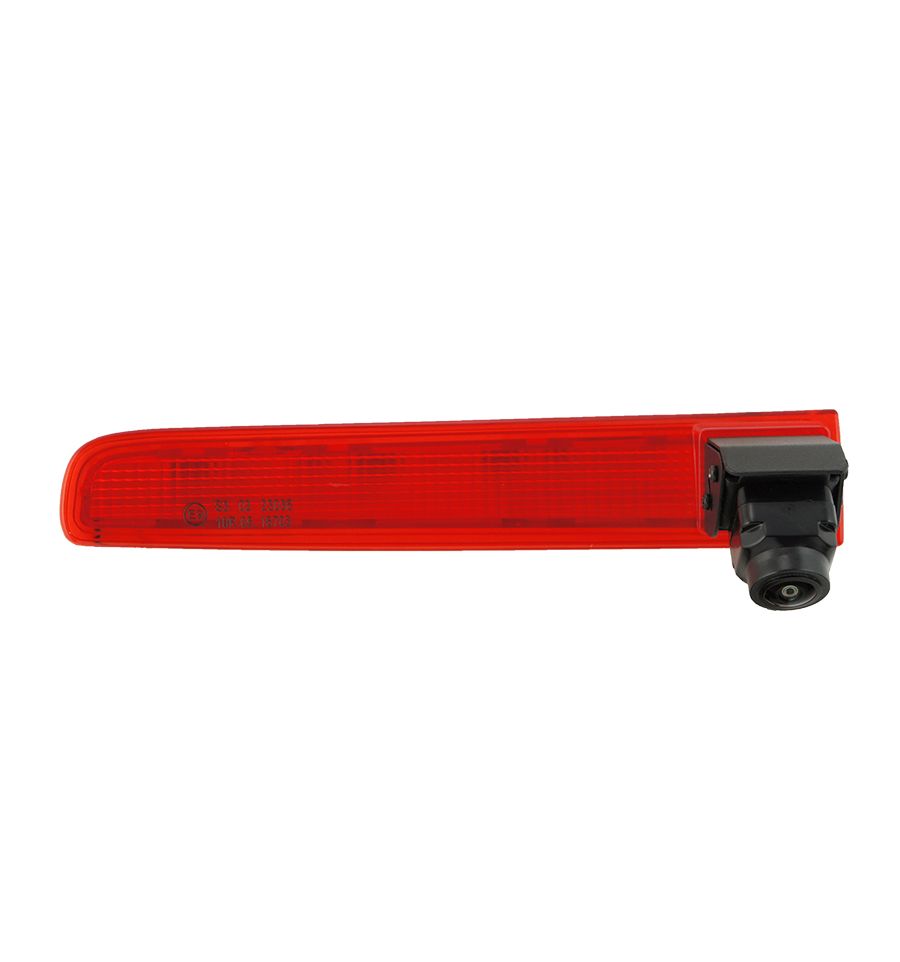

Telecamera di retromarcia NTSC specifica per VW T5/T6/T6.1 con doppia porta su terza luce stop
Valutazione: Scrivi per primo una recensione!
Telecamera di retromarcia NTSC integrata nella luce terzo stop per VW T5/T6/T6.1 con doppia porta
Con sensore CMOS, cavo di prolunga da 10m con connettore RCA,
Di facile installazione, che consiste nella sostituzione della luce terzo stop originale.
Compatibile con:
| Brand | Modello |
|---|---|
| Volkswagen | T5 (7H/7E) - California, Caravelle, Multivan, Tranporter or Transvan 03/2003 til 07/2015 For vehicles with double door only (does not fit vehicles with tail gate) For vehicles without high roof only (does not fit vehicles with high roof) Due to the arc of the rear doors, it is not possible to see the bumper and towing bar T6 (SG) - California, Caravelle, Multivan, Tranporter or Transvan 07/2015 til 10/2019 For vehicles with double door only (does not fit vehicles with tail gate) For vehicles without high roof only (does not fit vehicles with high roof) Due to the arc of the rear doors, it is not possible to see the bumper and towing bar T6.1 (SH) - California, Caravelle, Multivan, Tranporter or Transvan 10/2019 up For vehicles with double door only (does not fit vehicles with tail gate) For vehicles without high roof only (does not fit vehicles with high roof) Due to the arc of the rear doors, it is not possible to see the bumper and towing bar |
IMPORTANTE:
La compatibilità viene fornita a titolo puramente indicativo. Verificare sempre prima dell'acquisto la corrispondenza della forma e delle dimensioni della luce terzo stop installata sull'auto con quelle riportate nella descrizione e nelle immagini
Caratteristiche:
- Camera in vehicle-specific 3rd brake light
- Mounted by exchanging the factory 3rd brake light
- LED illumination integrated
- Camera position adjustable in 3 steps vertically
- Sensor-type CMOS 1/4inch HD low-light sensitive
- NTSC format (800 TV lines)
- Bezel F1.36
- Light sensitivity 0.01 LUX
- Infrared night vision LED
- Angle horizontal 120°, vertical 90°, diagonal 150°
- Mirrored picture (fixed)
- Guide-lines can be switched off by jumper
- Protection class IP69
- Mini 4pin-BM system harness with integrated throughput wire (blue) for reverse signal

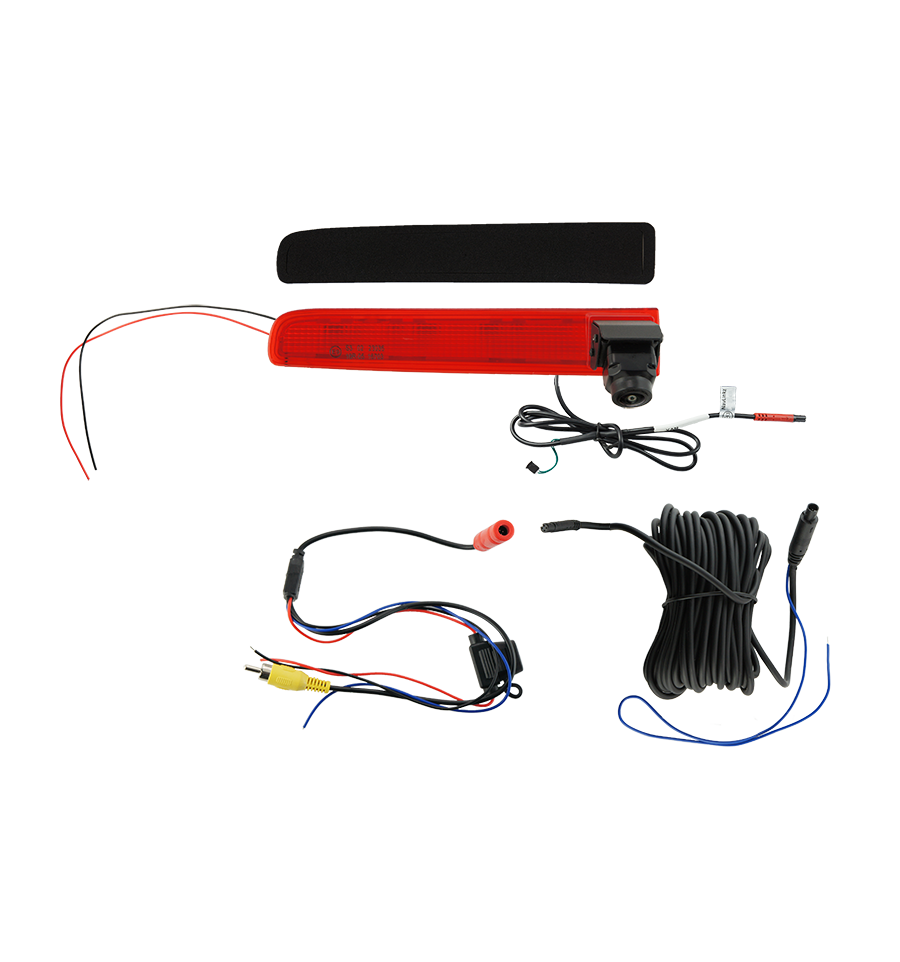

- 11.20m total system cable length, consists of:
- 0.80m cable fixed on camera to female 4pin-BM (diameter 5mm)
- 10.00m extension cable male 4pin-BM to female 4pin-BM
- 0.40m adapter male 4pin-BM to male RCA and power wires
Dimensioni:
| Brake light with camera | approx 187 x 45 x 88mm (W x H x D) |
| Overhang length camera (from brake light) | approx 45mm |
| Installation opening | approx 164 x 22mm (W x H) |
| Installation opening depth | approx 41mm |
| Operating voltage | +12V DC |
| Current consumption | max. 40mA |
| Suitable for permanent power (ACC) | Yes |
| Operating temperature range | -30°C to +75°C |
| Storage temperature range | -40°C to +80°C |
| Categoria | Telecamere |
